Built-in Multi-Gauge Electric Automatic Wheel Set Turntable

Built-in Multi-Gauge Electric Automatic Wheel Set Turntable

1. Brief introduction:

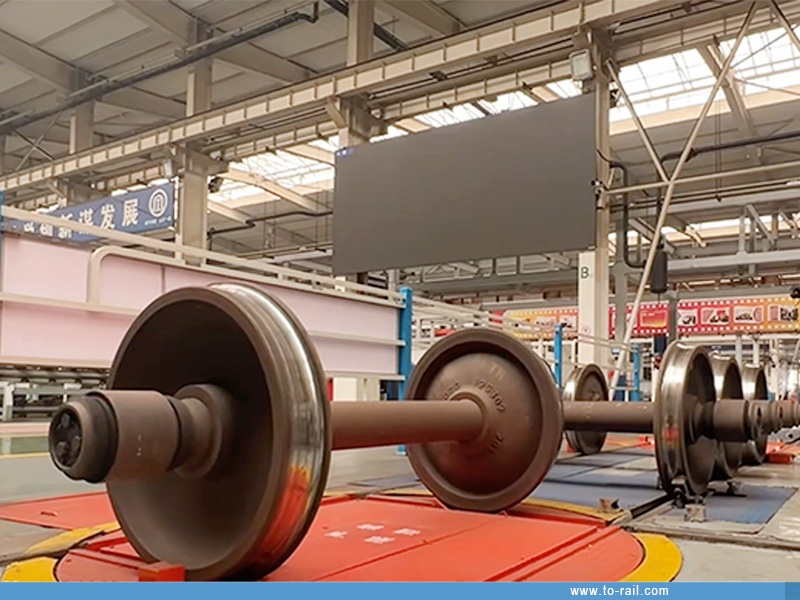

The built-in multi-gauge electric wheel set turntable (hereinafter referred to as the wheel set turntable) is specially designed for the steering operation of railway vehicle wheel sets on tracks. It adopts an embedded installation design, which is compact, stable and safe, and can adapt to multiple gauge standards, widely used in railway maintenance, assembly and other scenarios.

With advanced structural design and reliable electrical control system, the turntable ensures smooth lifting and rotation, accurate positioning, and effectively protects the wheel set from damage. It is equipped with dual control modes and complete safety protection functions, meeting international industry standards and environmental protection requirements.

2. Main Technical Parameters：

No.	Item	Technical Parameters
1	Power Supply	Three-phase AC: 380×(1±10%)V, 50×(1±2%)Hz
2	Dimension	(1671×1671×544) mm
3	Working Environment Temperature	0～40℃
4	Working Environment Humidity	0～90％
5	Working Noise	≤70dB
6	Adaptive Gauge	(1676, 1600, 1520, 1435, 1000) mm
7	Lifting Load Capacity	2.5t
8	Rotating Table Installation Type	Pit-mounted Type
9	Control Mode	Console & Remote Control
10	Lifting Height of Wheel Set Turntable	30-50mm
11	Lifting/Lowering Speed of Wheel Set Turntable	250mm/min
12	Rotating Speed	1r/min
13	Horizontal and Vertical Adjustment Error of Rotating Table	≤±2mm
14	Rotation Angle Error of Rotating Table	≤±1°
15	Indexing Angle of Wheel Set Turntable	4×90°, 2×180°

3. Structures:

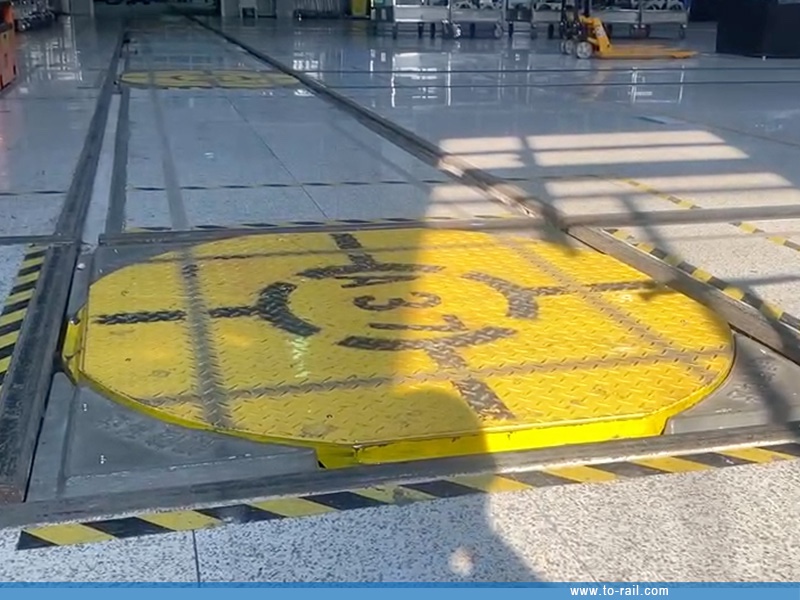

The wheel set turntable consists of turntable body, lifting device, driving device, guiding device and electrical control device. It is installed in the foundation pit, with the turntable surface flush with the plant floor. The diameter of the turntable panel is smaller than the inner distance of the track, so no cutting or modification of the track in the plant is required after installation.

4. Features：

• Built-in pit-mounted design, no on-site track modification needed.
• High-quality carbon steel body with 5mm anti-slip checkered plate and bearings for stable centering.
• Four flange brackets ensure safe wheel set positioning.
• Non-working state: flush with track, forklift (≥5t) accessible.
• Motor-worm gear drive, Siemens PLC for stable performance.
• Linear guide rail for smooth operation.
• Easy operation with automatic lift-rotate-fall.
• Dual control (console/remote), one-key rotation and safety protection.

5. Video:
