Locomotive Wheel Set Comprehensive Dimensional Measuring Machine
- Category： Railway Maintenance Workshop Equipment
- Power:≤20KW
- Application: measure wheel set dimensions automatically
- Noise level: ≤80db(A)
- Wheelset rotation speed: 0~5 r/min
Locomotive Wheel Set Comprehensive Dimensional Measuring Machine
1. Brief introduction:
The Locomotive Wheel Set Comprehensive Dimension Measuring Machine is a high-precision, automated testing equipment designed for locomotive wheel set detection. It can accurately measure multiple key parameters in one operation, ensuring the safety and reliability of locomotive operation. It is widely applicable to mainstream locomotive models and meets international testing standards.
This machine can complete the measurement of tread circumferential wear, flange height, flange thickness, rim width, wheel set inner distance, journal diameter, dust guard seat diameter and lateral movement.
2. Equipment basic parameters:
|
No. |
Item |
Parameter |
|
1 |
Standard Gauge |
1435mm |
|
2 |
Noise Level |
≤80db(A) |
|
3 |
Wheel Set Weight |
≤3.5t |
|
4 |
Equipment Load Capacity |
≥3.5t |
|
5 |
Wheel Set Rotation Speed |
0~5 r/min |
|
6 |
Power |
≤20KW |
3. Measurement parameters:
|
No. |
Detection Parameter |
Range (mm) |
Measurement Accuracy |
Repeatability Accuracy |
|
1 |
Wheel Diameter |
1140～1265 |
±0.1 |
≤0.1 |
|
2 |
Tread Circumferential Wear |
-1~10 |
±0.1 |
≤0.05 |
|
3 |
Flange Height |
25～40 |
±0.1 |
≤0.05 |
|
4 |
Flange Thickness |
22～37 |
±0.1 |
≤0.1 |
|
5 |
Rim Width |
130～145 |
±0.1 |
≤0.1 |
|
6 |
Wheel Set Inner Distance |
1349～1365 |
±0.1 |
≤0.1 |
|
7 |
Journal Diameter |
130-230 |
±0.005 |
≤0.005 |
|
8 |
Dust Guard Seat Diameter |
130-230 |
±0.005 |
≤0.005 |
|
9 |
Lateral Movement |
0-10 |
±0.05 |
≤0.05 |
4. Equipment structrure:

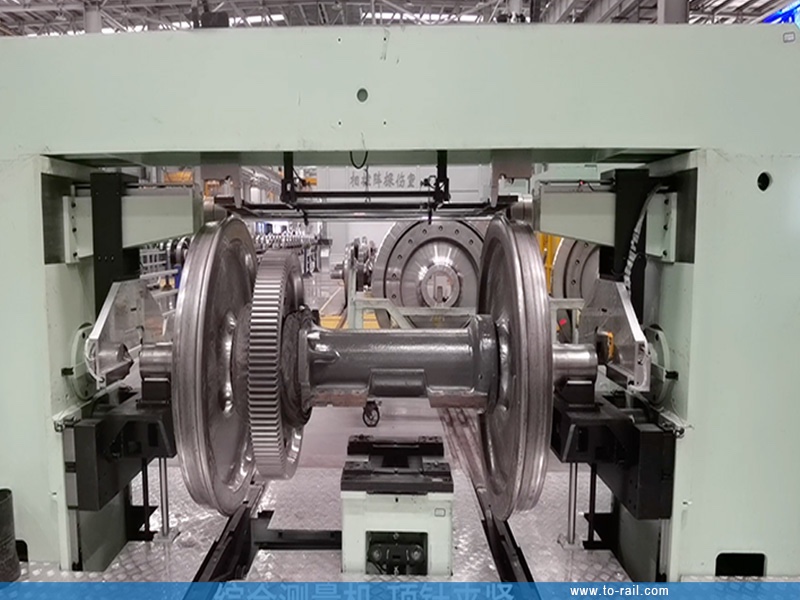

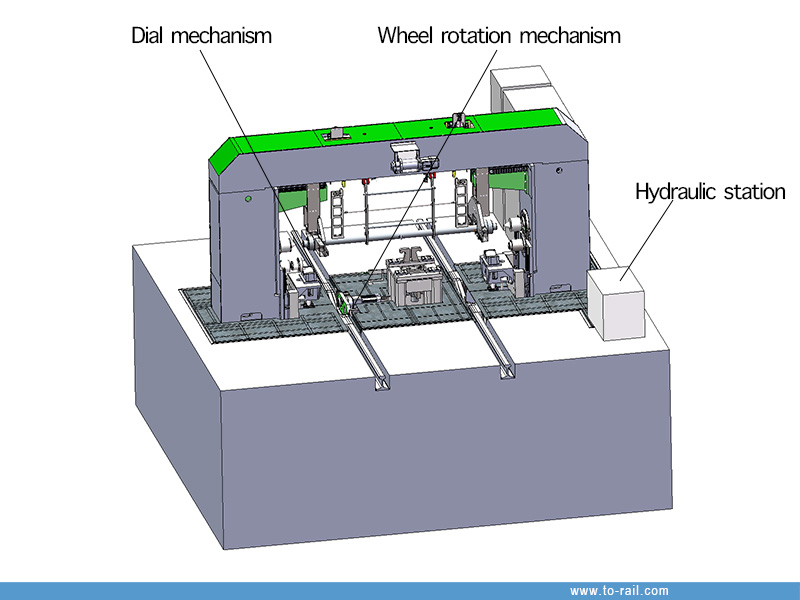

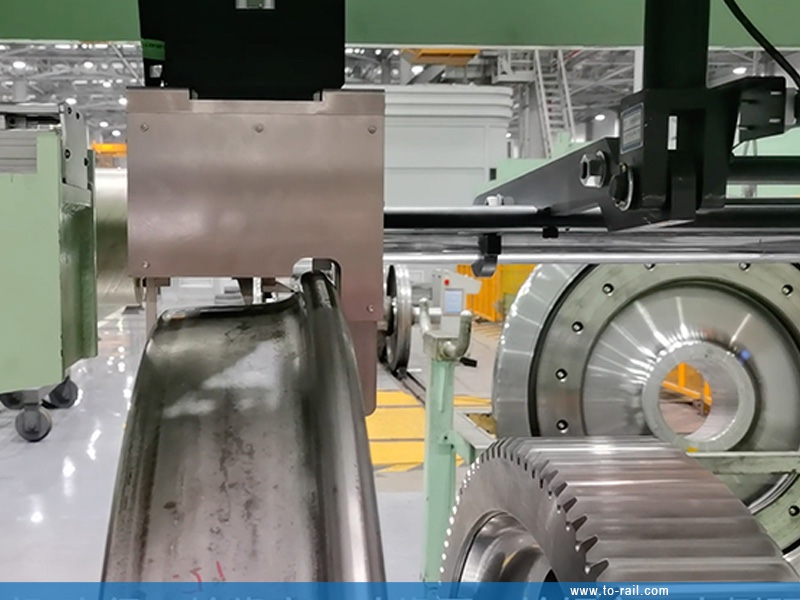

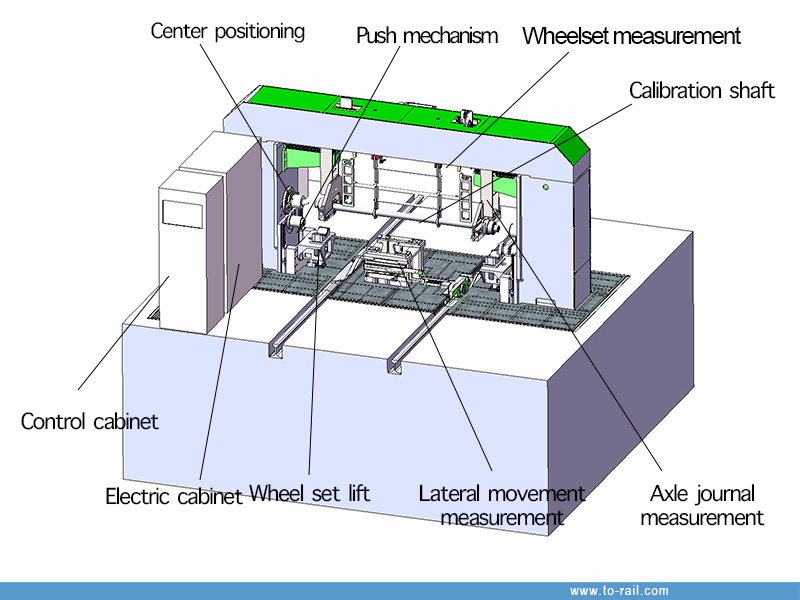

The equipment is mainly composed of electronic control system, operation interface, wheel set lifting mechanism, lateral movement measuring mechanism, wheel shifting mechanism, journal measuring mechanism and wheel set measuring mechanism. Each functional unit consists of several small modules, and the specific structure is shown in the equipment drawing.
