Double-Station Railway Wheel Set Bearing Run-In Machine
- Category： Railway Maintenance Workshop Equipment
- Applicable bearing outer diameter: 230mm, 250mm
- Power: 18KW
- Working efficiency: 6.5min/set
- Air source pressure: ≥0.6 MPa
Double-Station Railway Wheel Set Bearing Run-In Machine
1. Brief introduction:
Our double-station railway wheel set bearing run-in machine is specially designed for the run-in inspection of rolling bearing wheel sets during the receiving and dispatching process of railway freight cars. It fully complies with the requirements of the Rules for Assembly and Maintenance of Railway Freight Car Wheel Sets and Rolling Bearings, ensuring stable and reliable inspection results for your railway equipment maintenance.
The bearing run-in machine integrates advanced microcomputer automatic control system, pneumatic system, wheel set drive, braking and wheel pushing system, realizing full automation of the bearing run-in process. It greatly reduces manual operation intensity, improves work efficiency, and ensures the consistency and accuracy of the run-in inspection, effectively avoiding potential safety hazards caused by manual operation errors.
2. Key Technical Parameters:
|
No. |
Item |
Parameter |
|
1 |
Applicable Gauge |
1435 mm |
|
2 |
Applicable Wheel Diameter |
Φ760～840 mm |
|
3 |
Applicable Bearing Outer Diameter |
Φ230 mm, Φ250 mm |
|
4 |
Voltage |
AC3×380V/220V 50HZ |
|
5 |
Power |
18 kW |
|
6 |
Run-in Wheel |
Φ350 mm |
|
7 |
Working Efficiency |
About 6.5 min/set |
|
8 |
Air Source Pressure |
≥0.6 MPa |
|
9 |
Grinding Speed |
60～100 km/h |
|
10 |
Overall Dimensions (L×W×H) |
3520×2680×2668 mm |
|
11 |
Equipment Weight |
5 t |
3. Main Structure & Features:

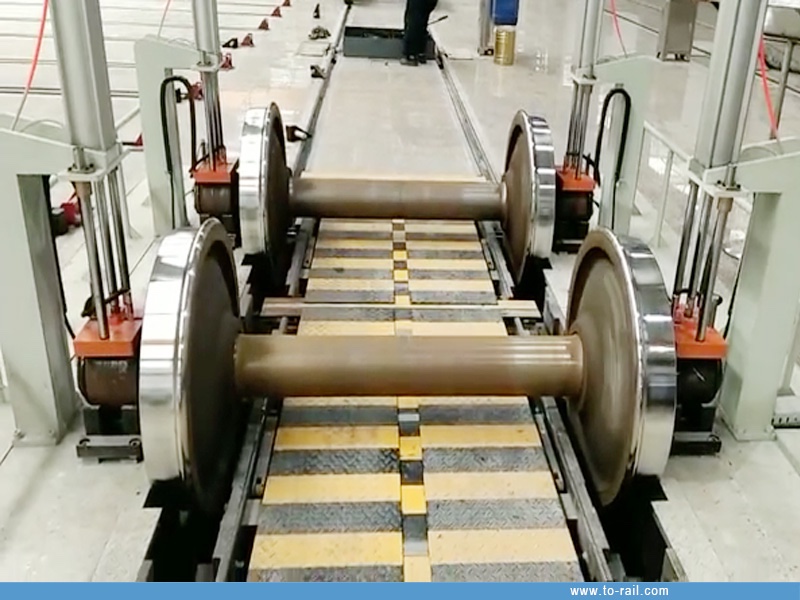

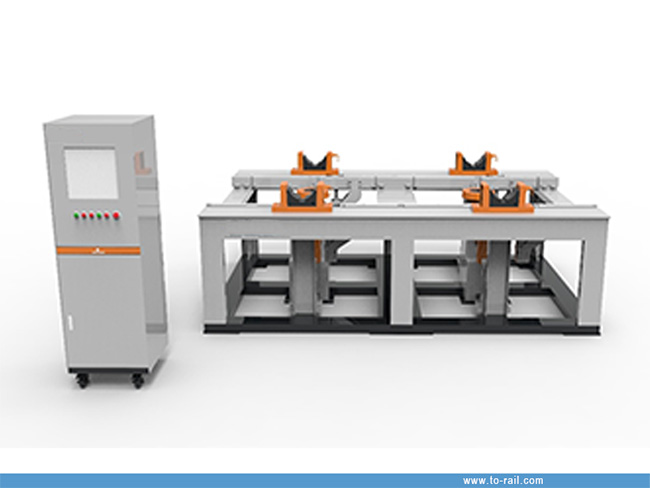

The bearing run-in machine is composed of the run-in machine main unit, pneumatic system and electrical control system. The main unit adopts a sunken structure, which only has the bearing seat protruding from the ground after installation, saving workshop space and ensuring safe operation.

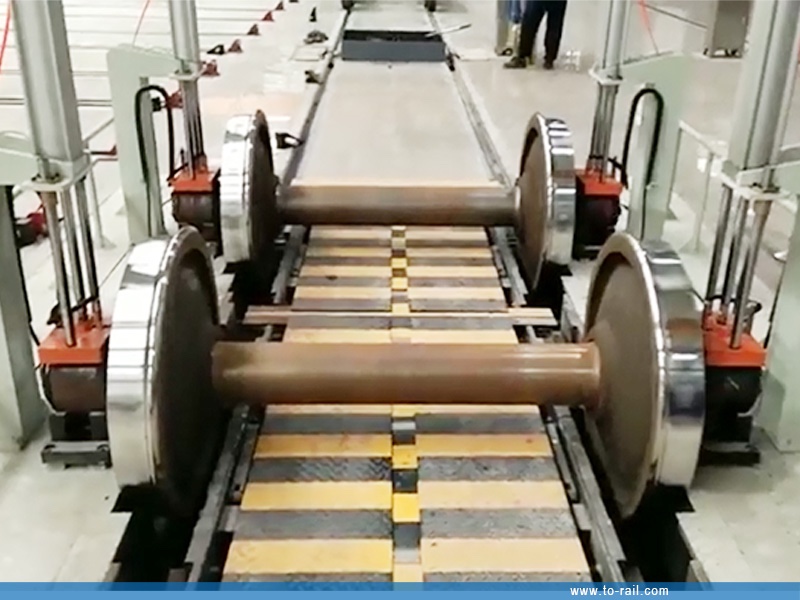

During operation, the track descends, and the wheel set falls into the bearing seat along with the track, realizing stable and smooth run-in operation. The integrated automatic control system can monitor the run-in process in real time, automatically alarm for abnormal conditions, and ensure the safety and stability of the equipment during long-term operation.
4. Product Advantages:
• Full Automation: The entire bearing run-in process is automatic, reducing manual intervention and improving work efficiency.
• Compliance with Standards: Strictly in line with international railway maintenance standards, ensuring the qualification of inspected wheel sets.
• Space-Saving Design: Sunken main unit structure, adapting to various workshop layouts.
• Stable Performance: Advanced control system and high-quality components ensure long-term stable operation and low failure rate.
• Wide Adaptability: Suitable for various standard wheel sets and bearings, strong versatility.
We are committed to providing high-quality railway maintenance equipment and professional after-sales service. If you have any questions about the product, please feel free to contact us for detailed information and quotation.
