1. Brief introduction:

As a professional manufacturer of intelligent bearing storage systems, we are committed to providing high-precision, reliable and efficient storage solutions for global locomotive, railway and industrial enterprises. Our integrated bearing intelligent storage system integrates advanced technology, strict quality control and humanized design, solving the pain points of traditional bearing storage such as low efficiency, difficult positioning and poor safety, and helping enterprises optimize production processes and reduce operational costs.

Our bearing intelligent storage system is a comprehensive solution tailored for bearing storage, access and transportation. It is widely applicable to locomotive wheelset bearings (such as HXD1C, HXD1D, HXD2B, HXD3C models) and various industrial bearings, with stable performance and strong adaptability, meeting the storage needs of different scales of enterprises.

2. System Composition & Core Advantages:

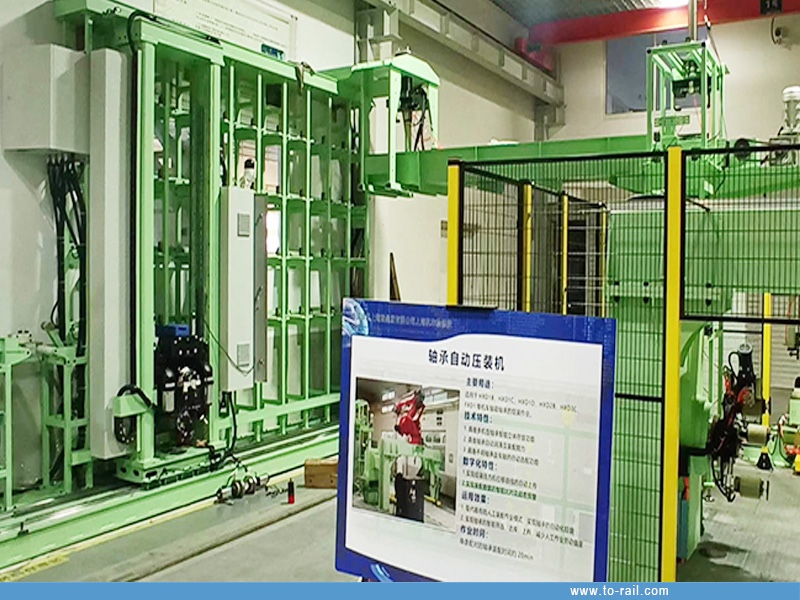

• Stereoscopic Bearing Warehouse: Adopts steel structure frame with dimensional accuracy of ±2mm, equipped with plastic protective blocks to avoid direct contact between bearing outer rings and metal beams. It supports regional storage by bearing model, category and inner diameter, with a storage capacity of no less than 36 bearings (customizable according to on-site space).
• Stacker Crane: Double-column structure made of high-quality steel, driven by dual servo motors with gear-rack transmission and linear guide rails. Rated load ≥100kg, positioning accuracy ±1mm, capable of picking and delivering 1 set of bearings at a time. Supports manual and automatic dual control modes, with 6-fold safety protection (polyurethane buffers, position detectors, emergency stop switches, etc.) and backup schemes for fault scenarios.

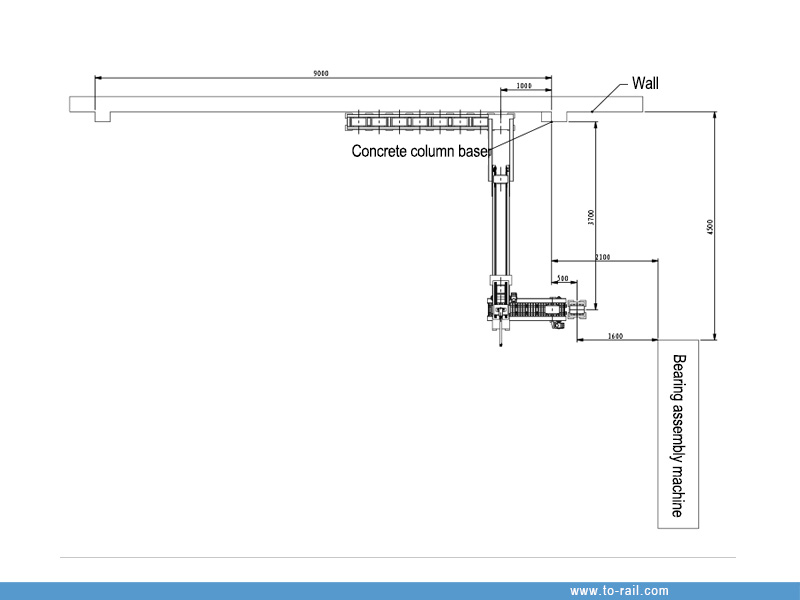

• Bearing Conveyor Line: Adopts overhead cross-channel conveying with a clear height of no less than 2000mm, composed of positioning tooling, overhead conveyor line, vertical lifting mechanism and ground buffer tooling. It can automatically convey bearings to the pressing station, with linkage automatic control and manual independent operation modes, equipped with position detection sensors for full-process monitoring.
• Intelligent Control System: Integrates high-performance industrial control computer and PLC, realizing data exchange with bearing press machine and production line control system. Supports manual input of bearing parameters, visual identification of bearing marks, and 180° rotation function to ensure correct pressing.
• Safety Protection Devices: Equipped with self-locking vertical gripping devices, safety guards for overhead conveyor lines, emergency stop buttons and photoelectric alarm devices, fully ensuring the safety of equipment operation and bearing storage.

3. Technical parameters:

4. Why choose us?

• Professional Technical Strength: We have a professional R&D and design team, focusing on the research and development of intelligent bearing storage equipment for many years, with rich experience in customization and installation.
• Strict Quality Control: All equipment components are selected from high-quality materials, through strict testing and inspection, to ensure long-term stable operation of the equipment.
• Comprehensive Technical Support: We provide complete technical documents (electronic and paper versions), including general assembly drawings, electrical schematics, control logic diagrams, etc., and offer on-site installation, commissioning and after-sales maintenance services.
• Customizable Solutions: According to the on-site space, bearing type and production needs of customers, we tailor personalized storage solutions to meet the diverse needs of different enterprises.
• Global Service Network: We provide timely and efficient after-sales service for customers around the world, solving equipment operation problems quickly and ensuring the smooth progress of production.
