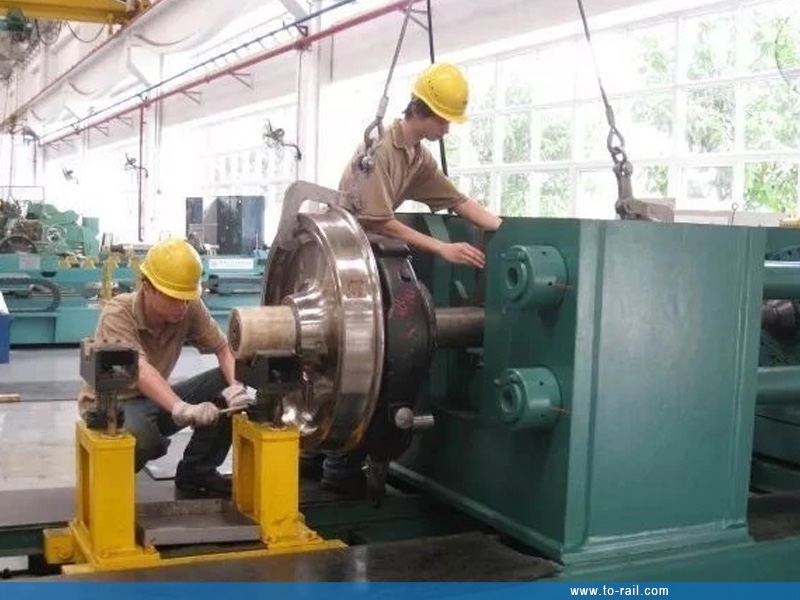

Single-cylinder Wheel Set Disassembly Machine
- Category： Railway Maintenance Workshop Equipment
- Applicable Wheel Diameter:Ф760～Ф920mm
- Applicable Axle Length Range:2100～2400 mm
- Main Cylinder Stroke:≤500mm
- Main Hydraulic Cylinder Maximum Unloading Force:3000 kN
Single-cylinder Wheel Set Disassembly Machine
1. Brief introduction:
The single-cylinder wheel set disassembly machine is primarily designed for the wheel removal operation of wheel sets on vehicles without gearboxes. It is adaptable to various wheel sets and different process requirements.
After the wheel set is lifted and transported to the disassembly station, the height of the wheel set is adjusted by manually rotating the lead screw nut. Subsequently, the PLC control system enables the automatic execution of wheel set disassembly and backpressure testing. Featuring a rational structure, reliable performance, simple operation, and easy maintenance, this equipment effectively meets the wheel disassembly requirements of railway vehicle wheel sets (excluding gearbox-equipped models).
2. Main technical parameters:
| No. | Item | Parameters |
| 1 |
Applicable Wheel Diameter |
760～920 mm |
| 2 |
Applicable Axle Length Range |
2100～2400 mm |
| 3 |
Main Cylinder Stroke |
≤500 mm |
| 4 |
Main Hydraulic Cylinder Maximum Unloading Force |
3000 kN |
| 5 |
Hydraulic System Working Pressure |
25 Mpa |
| 6 |
Installed Power Total Capacity |
25 kW |
| 7 |
Main Unit Dimension (L×W×H) |
3500×1020×1230 mm |
| 8 |
Main Unit Mass |
Approx. 4.8 t |
3. Main structure:

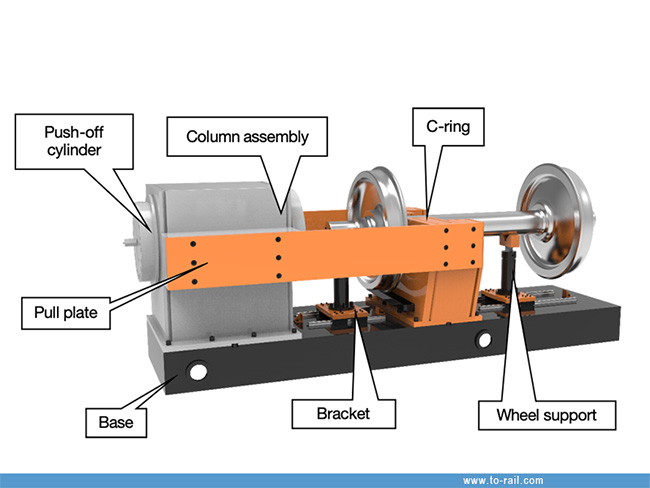

The single-cylinder wheel set disassembly machine is mainly composed of main components including a base, a column, a C-ring, a support plate assembly, a support wheel assembly, a disassembly cylinder, an insertion plate, a hydraulic system, and an electrical control console.
