Automatic Wheel-axle Pre-assembly Machine Wheelset Assembly Equipment
- Category： Railway Maintenance Workshop Equipment
- Load capacity: 600kg
- Flipping angle: 0~90°
- Pre-assembly Coaxiality Accuracy: ≤Ф1mm
- Wheel Conveying Speed: 0-10m/min
Automatic Wheel-axle Pre-assembly Machine
1. Brief introduction:
The automatic wheel-axle pre-assembly system is mainly composed of key structures including a docking mechanism, a wheel in-place clamping mechanism, a wheel in-place flipping mechanism, a traveling drive mechanism, a wheel pre-installation drive mechanism, and an electrical control system.
This equipment is primarily designed for the pre-assembly of wheels directly on the automated wheel conveying system. Once the wheels are in position, they are securely clamped by the precision centering clamping mechanism. Following safe clamping, the wheel flipping mechanism rotates the horizontal wheels to a vertical position. The system is also equipped with a safe access platform, enabling maintenance personnel to perform tasks such as grinding the inner holes of the wheel hubs and applying molybdenum disulfide.
2. Main technical parameters:
|
No. |
Item |
Performance Parameter |
|
1 |
Load Capacity per Pre-assembly Module |
600kg (Suitable for carrying urban rail wheels) |
|
2 |
Flipping Angle |
0～90° |
|
3 |
Pre-assembly Coaxiality Accuracy |
≤Ф1mm |
|
4 |
Wheel Conveying Speed |
0-10m/min |
|
5 |
Wheel Axial Pre-assembly Speed |
0-6m/min |
|
6 |
Max. Axial Travel of Traveling Mechanism |
1.5m |

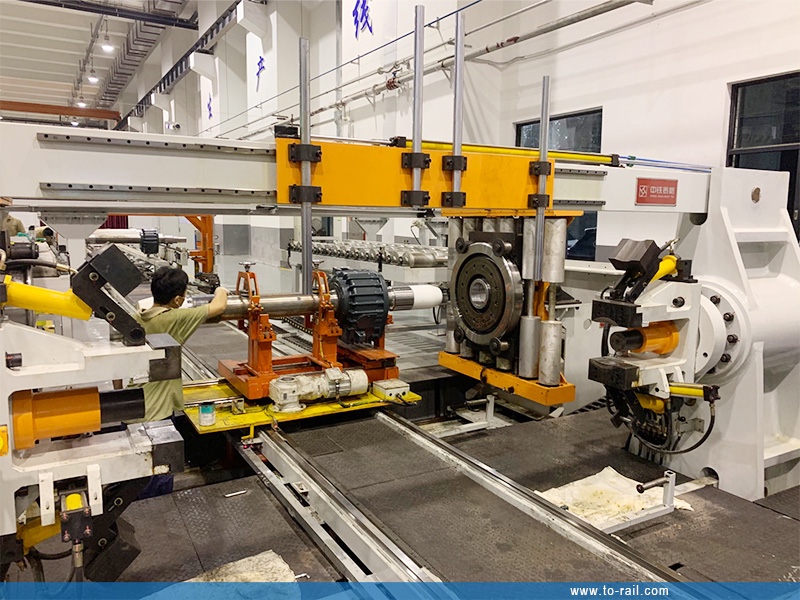

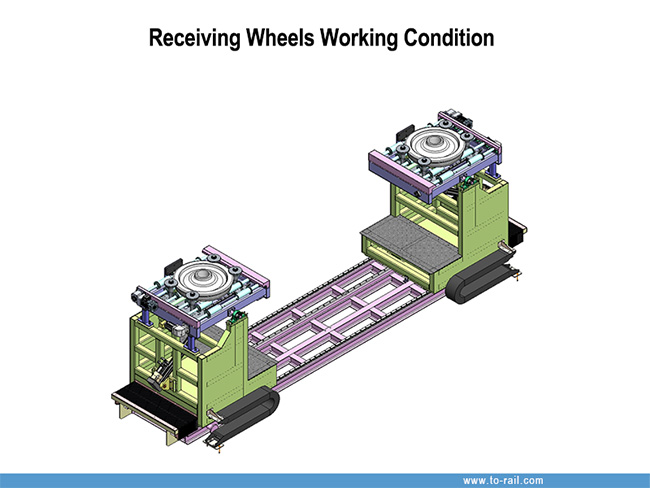

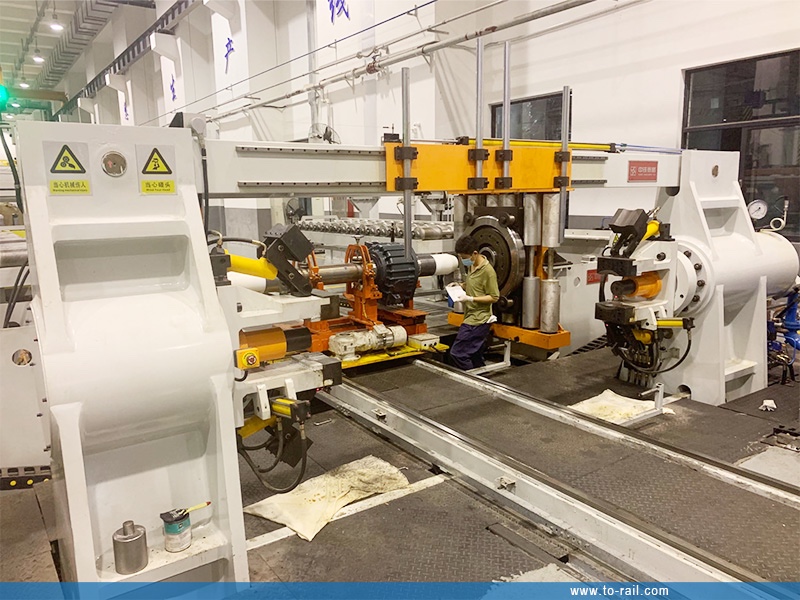

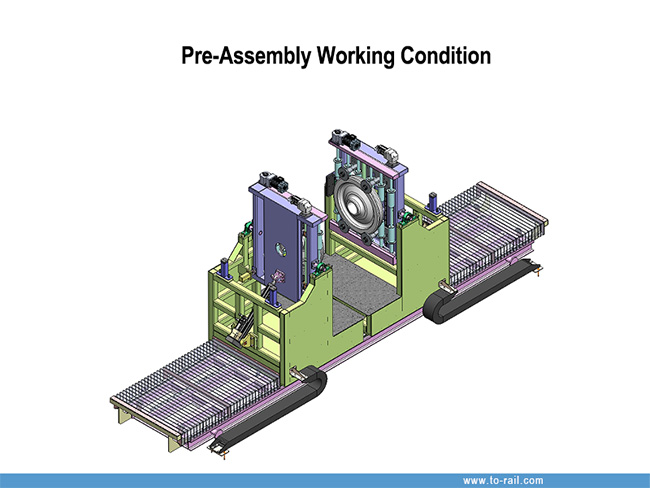

3. Working conditions:
