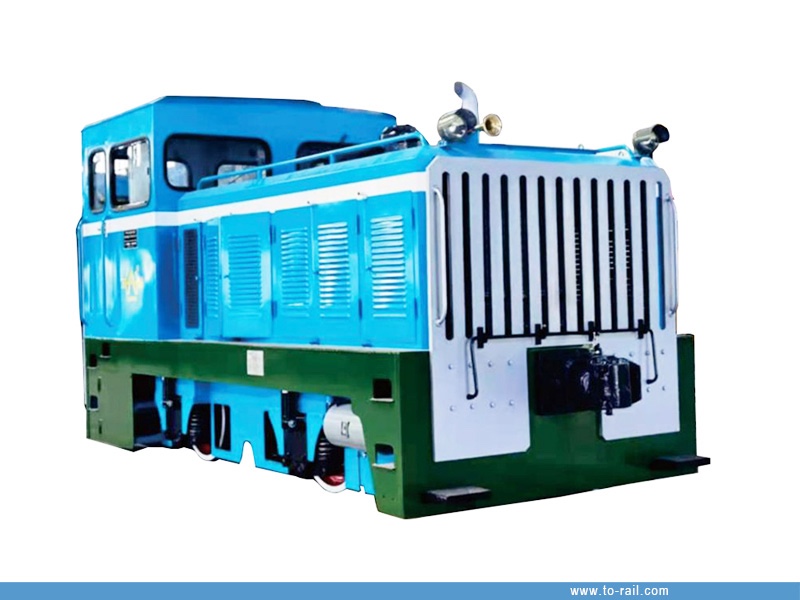

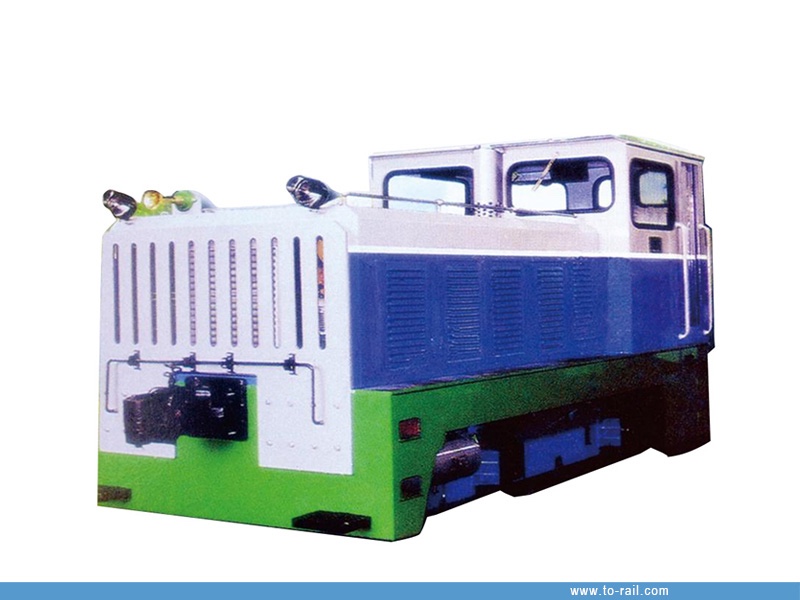

TJY240F Diesel-hydraulic Locomotive Shunt Locomotive for Mill Industrial Mineral Railway
- Category： Shunt Locomotive
- Model: TJY240F
- Rated power: 175KW
- Design speed:20km/h
- Track gauge: 1435mm or customized
TJY240F Diesel-hydraulic Locomotive Shunt Locomotive for Mill Industrial Mineral Railway
1. Brief introduction:
The TJY240F diesel-hydraulic locomotive is a professional shunting locomotive specially developed for steel mill, industrial enterprises, mining enterprises, railways depot, and metro company, integrating reliability, operability and comfort to meet the efficient shunting needs of steel plants.
Designed with the driver’s working experience in mind, the locomotive is equipped with a left-mounted console for easy operation. The driver cab is fully surrounded by glass windows, ensuring wide viewing angles and convenient observation of the working site. With a spacious and well-lit interior, the cab adopts sound-absorbing and heat-insulating structures, effectively reducing noise and temperature changes, and creating a comfortable and quiet working environment for drivers during long hours of operation.
Proven by long-term operation at customer sites, the TJY240F locomotive delivers stable and satisfactory performance. It features simple operation and convenient maintenance, greatly reducing daily use and maintenance costs for customers, and improving work efficiency.
We are committed to providing high-quality locomotive products and professional after-sales service. If you have any questions about the TJY240F diesel-hydraulic locomotive or need customized solutions, please feel free to contact us.
2. Technical parameters:
|
Model |
TJY240F |
|
Application |
Shunting |
|
Rated power(KW) |
175 |
|
Design speed (km/h) |
20 |
|
Min continuous speed (km/h) |
6 |
|
Traction effort at wheel rim (KN) |
50.14/60.12 |
|
Service weight(t) |
20/24 |
|
Axle load(t) |
10/12 |
|
Wheel diameter(mm) |
680 |
|
Track gauge(mm) |
1435 |
|
Axle arrangement |
0-2-0 |
|
Min radius(m) |
30 |
|
Transmission mode |
Hydrodynamic transmission |
|
Coupler type |
KD5 |
|
Coupler center height(mm) |
880 |
|
System voltage |
DC24V |
|
Braking |
Mechanical brake, air brake |
|
Dimensions(mm) |
6550*2565*3170 |
3. Typical applications:
|
Steel mill |
Coal enterprise |
Iron mine enterprise |
|
Phosphate mine enterprise |
Nickel mine enterprise |
Copper mine enterprise |
|
Cement plant |
Railway shunting |
Metro shunting |

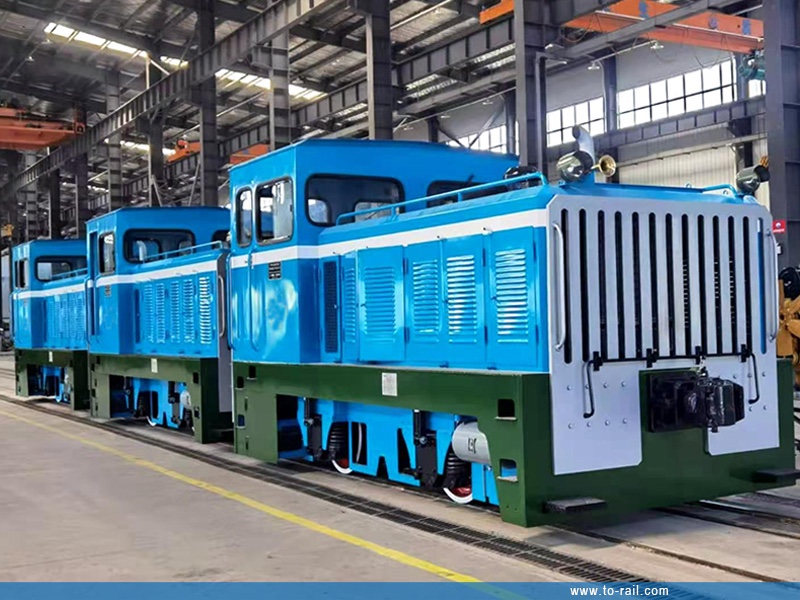

4. Production in workshop:

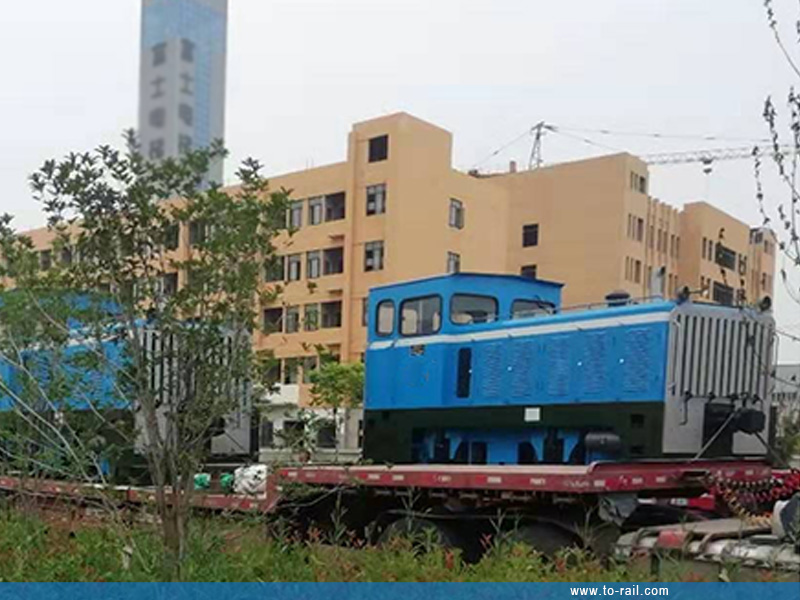

5. Delivery:
