Axle Automatic Conveyor System Railway Wheelset Automatic Process Equipment

Axle Automatic Conveyor System Railway Wheelset Automatic Process Equipment

1. Brief introduction:

Our Axle Automatic Conveyor System is a high-precision, efficient conveying solution specially designed for urban rail transit axles and similar heavy-duty workpieces. It integrates stable structure, precise positioning and reliable operation, effectively improving the automation level and production efficiency of axle processing and transportation, and reducing manual operation intensity.

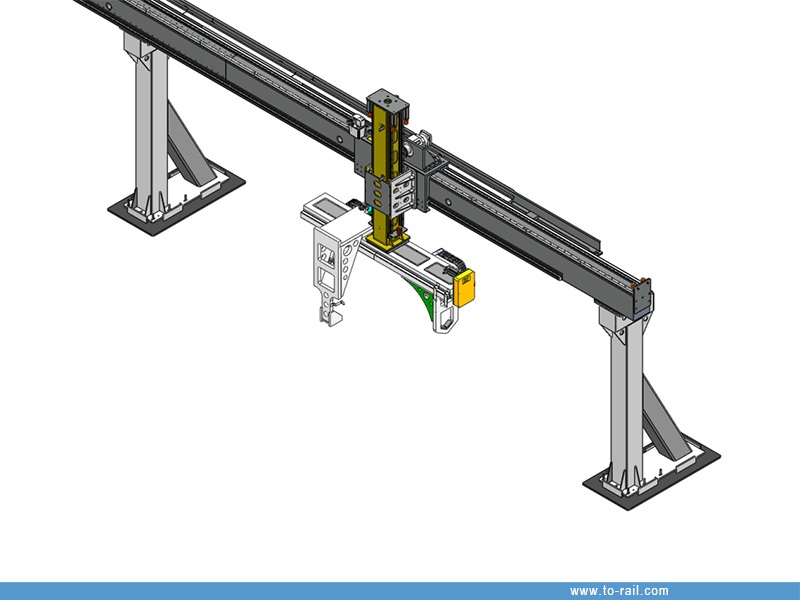

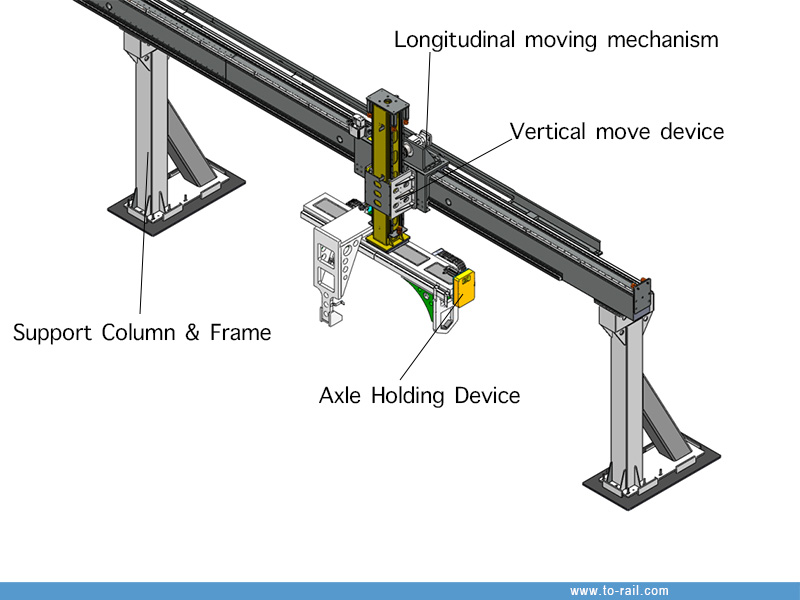

The system is mainly composed of supporting column frame, longitudinal moving mechanism, vertical moving mechanism and axle clamping mechanism. The longitudinal and vertical moving mechanisms adopt the driving mode of servo motor directly connected with reducer, and realize smooth and efficient power transmission through the meshing transmission of precision gear and rack. At the same time, the guide roller mechanism provides stable motion constraint, which effectively reduces yaw and vibration during operation, ensuring high-precision positioning of axle workpieces in longitudinal and vertical directions, and meeting the strict requirements of axle processing and assembly.

2. Main technical parameters:
