JW-4G Hydraulic Railway Catenary Cable Installation & Maintenance Vehicle
- Category： Track Maintenance Equipment
- Rated power: 353KW
- Displacement:11.596L
- Transmission method: hydraulic transmission
- Starting traction: ≥50kN
JW-4G Hydraulic Railway Catenary Cable Installation & Maintenance Vehicle
1. Brief introduction:

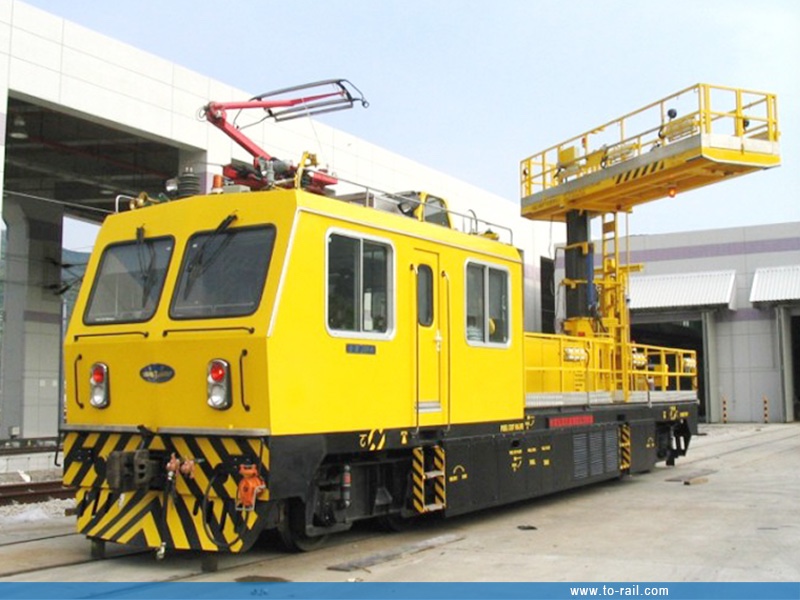

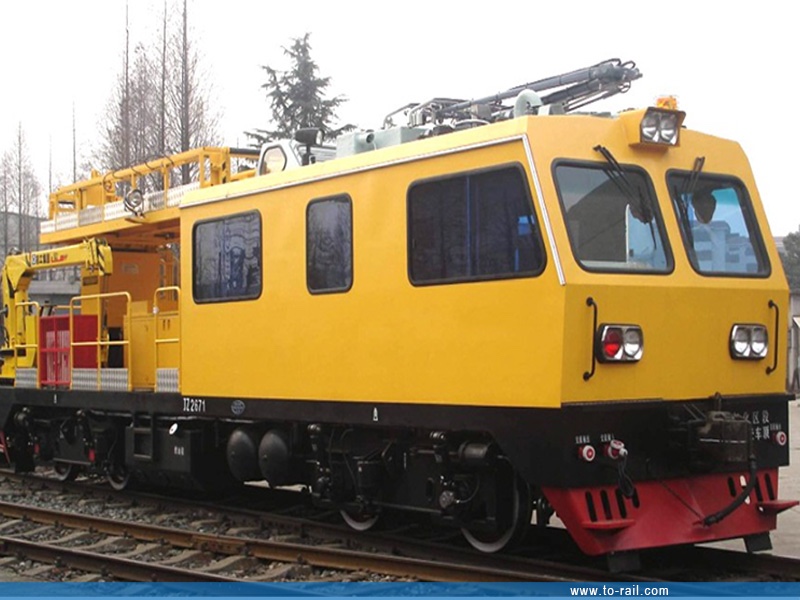

The JW-4G Overhead Catenary Inspection & Maintenance Vehicle is a high-performance, reliable rail equipment designed for the installation, inspection, maintenance and emergency repair of electrified railway overhead catenary systems. With a maximum operating speed of 120km/h, it adopts hydraulic transmission and a full hydraulic lifting and slewing working platform, ensuring efficient and safe operation in various railway working scenarios. It is widely used in standard gauge electrified railways, featuring stable performance, strong adaptability and easy operation, which can fully meet the daily operation and emergency support needs of railway catenary maintenance.
Equipped with a powerful Weichai engine and advanced braking system, the JW-4G vehicle ensures excellent traction and braking performance, even in harsh working environments. The automatic leveling working platform can adapt to curve superelevation, providing a safe and stable operating space for maintenance personnel. It can also be used for traction of materials, tools and personnel, realizing multi-functional application and improving work efficiency.
2. Main technical parameters:
|
Technical Parameters |
Specifications |
|
Gauge |
1435mm (Standard Gauge) |
|
Axle Arrangement |
2-B (B-2) / 4 Axles |
|
Wheelbase |
2400mm |
|
Wheel Diameter |
New Wheel: 840mm; Worn Wheel: 790mm |
|
Service Weight |
Approx. 46～48t (Single Axle Weight: Approx. 11.5t) |
|
Minimum Curve Radius |
100m (at 10km/h) |
|
Maximum Operating Speed |
120km/h (Traction 50t) |
|
Coupled Operating Speed |
120km/h |
|
Climbing Capacity |
≥33‰ |
|
Overall Dimensions (L×W×H) |
15930 × 3118 × 4480～4625 mm |
|
Coupler |
Type 13/13B, Center Height: 880±10mm |
|
Braking Distance |
≤400m (Initial Speed 80km/h, Straight Track); ≤800m (Initial Speed 120km/h, Straight Track) |
|
Engine |
Weichai WP12.480, In-line 6-cylinder, EFI, Water-cooled, Turbocharged Air-to-air Intercooled |
|
Rated Power |
353kW / 480HP |
|
Displacement |
11.596L |
|
Emission Standard |
National Ⅲ / Euro Ⅲ |
|
Transmission |
Hydraulic Transmission (Voith, etc.), Stepless Speed Change |
|
Starting Traction |
≥50kN |
|
Braking System |
Main Brake: JZ-7 (JZ-7G) Pneumatic Brake; Foundation Brake: Single-sided Tread Brake Shoe with Automatic Clearance Adjustment; Parking Brake: Hand Brake/Parking Brake |
|
Air Compressor |
1.08m³/min |
|
Main Air Reservoir |
500L |
|
Working Platform |

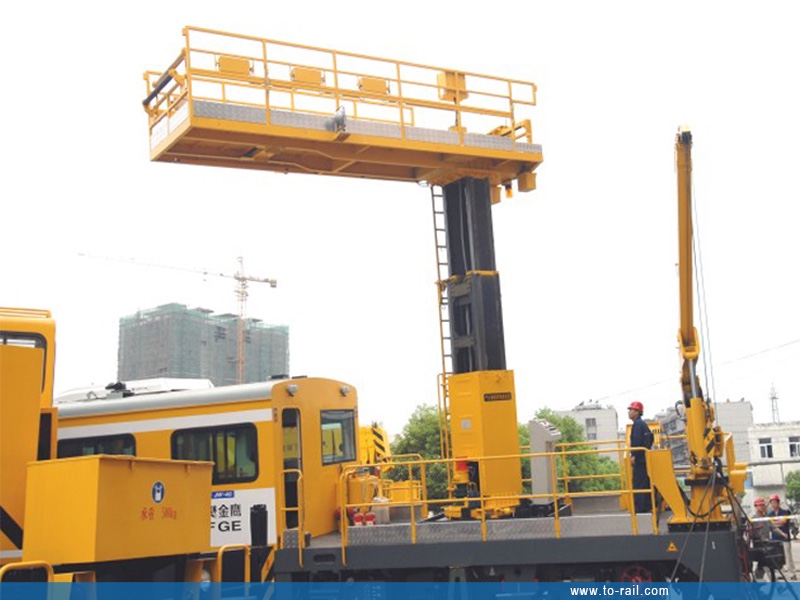

Full Hydraulic Lifting + Slewing Platform with Automatic Leveling (Adapting to Curve Superelevation); Main Platform: Lifting and Slewing for Catenary Wire and Lower Part Inspection; Side Platform: Avoiding Wires to Lift to High Position for Upper Structure Inspection |
|
Interfaces |
Power Tool Interface, Pneumatic/Hydraulic Interface |
|
Occupancy |
Approx. 15 Seats in Cab |
|
Fuel Tank Capacity |
1000L |
|
Hydraulic Oil Tank Capacity |
220L |
|
Storage Battery |
2V×24 Pieces (NM-200) / 200Ah×4 |
|
Operating Environment |
-25℃ ～ +45℃ |
|
Application |
Overhead Catenary Installation, Adjustment, Inspection and Maintenance; Daily Patrol, Emergency Repair and Rescue; Traction of Materials, Tools and Personnel |
3. Main structure:
The JW-4G Catenary Inspection Vehicle are designed to ensure stability, safety and operability, including the following parts:
- Bogie: Adopting 4-axle structure with standard gauge wheelsets, ensuring stable running on electrified railway tracks.
- Power System: Composed of Weichai WP12.480 engine and hydraulic transmission device, providing strong power support for the vehicle's operation and work.
- Working Platform System: Full hydraulic lifting and slewing platform with automatic leveling function, including main platform and side platform, meeting different maintenance operation needs.
- Braking System: Integrating main air brake, foundation brake and parking brake, ensuring reliable braking performance in various working conditions.
- Cab and Operating System: Spacious cab with about 15 seats, equipped with professional operating controls, easy to operate and monitor the vehicle status.
- Auxiliary Systems: Including fuel supply system, hydraulic system, electrical system and air supply system, providing comprehensive support for the normal operation of the vehicle.
