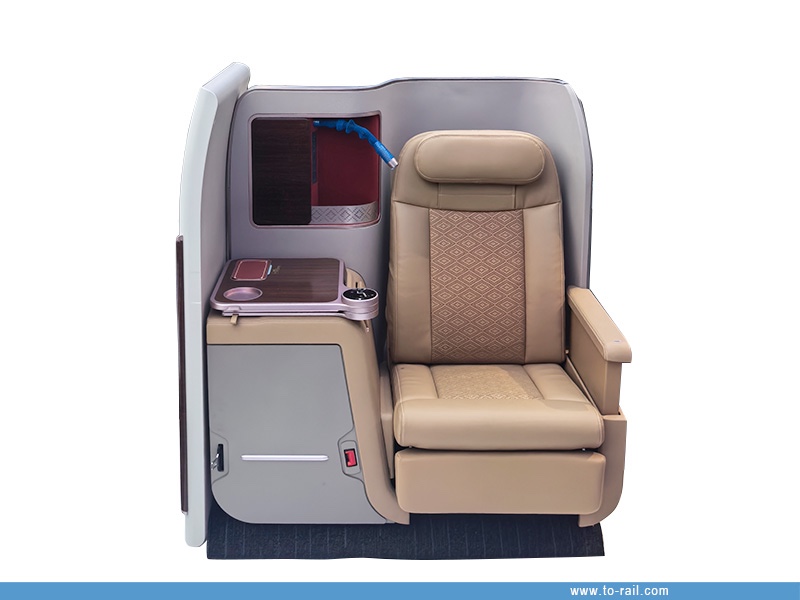

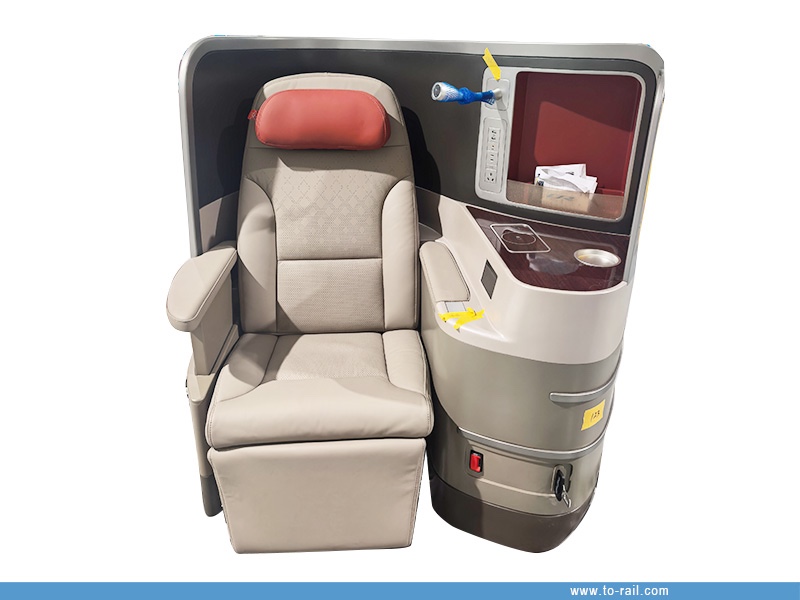

VIP Passenger Seat for High Speed Train

1. Production overview:

The VIP seat is a premium long-haul passenger seat integrating aviation grade comfort with railway application requirements. Adopting a rocker linkage motion mechanism, it delivers multi-position reclining performance for high-speed rail first-class / VIP cabin scenarios. Optimized dimension layout ensures generous riding space, while full-set electric adjustments and intelligent auxiliary functions bring first-class travel experience for long-distance passengers.

2. Technical parameters:

Item	Parameter
Application Scenario	Long-distance high-speed train
Motion Mechanism	Rocker-linkage
Carbody Mounting Pitch	1156 mm
Seat Height	440 mm
Seat Width	550 mm
Seat Depth	495 mm
Backrest Initial Inclination Angle	104°
Backrest Max Reclining Angle	175°

3. Main Features

Seat Rotation: Foot-pedal release unlocking design for convenient seat rotation
Electric Leg Rest: Built-in electric leg rest to support full-body relaxation during long journeys
Fixed Armrest: Robust fixed-type armrest with built-in front fold-out table
Electric Position Adjustment: All seat postures controlled by electric push-button operation
Press-type coat hook for hanging coats and personal belongings
Value-added Intelligent Functions
Wireless charging module for portable devices
Rear-mounted LCD display for in-seat entertainment & information service
Intelligent electronic control system: controller + DC drive motor
Angle sensor & position sensor available as optional configuration
