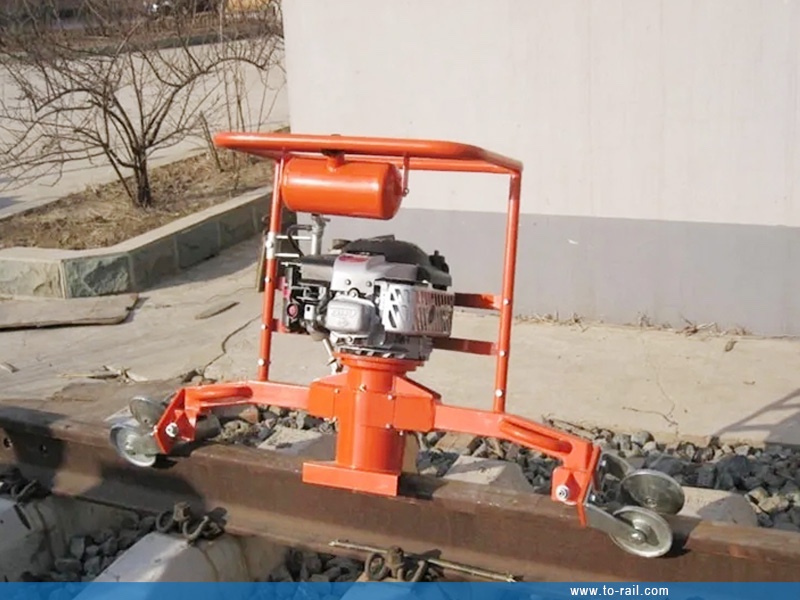

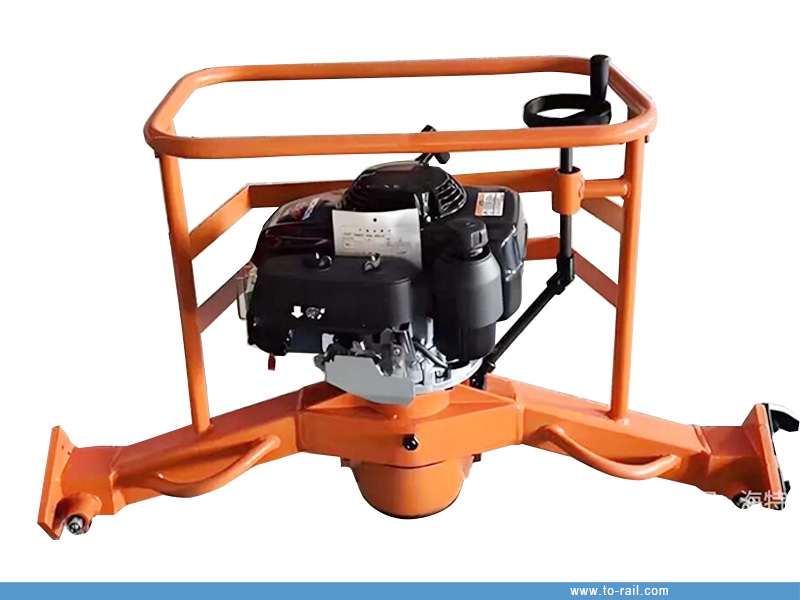

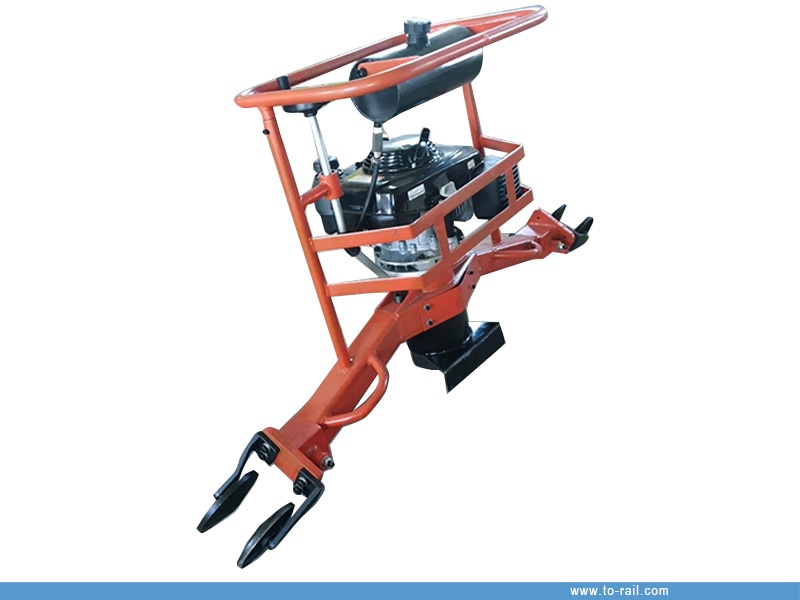

Profile Rail Grinder Rail Joint Grinder(FMG—4.4)
- Category： Track Maintenance Equipment
- Model: FMG—4.4
- Fuel Consumption:
- Fuel Consumption: About 1.8 L/h
- Grinding Head Speed: 4000r/min
Profile Rail Grinder Rail Joint Grinder(FMG—4.4)
1. Product Introduction
The internal combustion profile grinder is a small machine used for profile grinding of rail heads after rail welding and rail damage repair welding. It is suitable for grinding operations of various types of rails (43-75kg/m) after welding and rail head repair welding in the base or on-site. With auxiliary devices, it can also perform flat grinding and wave wear grinding. It is also an ideal tool for ultra-long seamless line laying, broken rail repair and stress relief.
The machine is reasonably designed, compact in structure, flexible in operation and convenient to get on and off the track. Equipped with an imported gasoline engine, it has low failure rate and reliable performance, which is more suitable for field on-site operations and has advanced technical performance. After profile grinding, the rail is not only smooth, but also can restore the original rail head contour, making train operation more stable and safe.
2. Technical Parameters
|
Item |
Specification |
|
Model |
FMG—4.4 |
|
Fuel Tank Capacity |
2L |
|
Fuel Consumption |
About 1.8 L/h |
|
Engine Model |
Vertical Shaft Gasoline Engine |
|
Power Type |
4KW Honda GXV160 Engine |
|
Grinding Head Speed |
4000r/min |
|
Grinding Wheel Specification |
Φ150×Φ55×70 |
|
Grinding Wheel Stroke |
60mm |
|
Grinding Wheel Inclination Angle |
0~90° |
|
Feed Per Revolution of Feed Handwheel |
1.35mm |
|
Total Machine Weight |
75kg |
|
Overall Dimensions |
1480mm×500mm×800mm |
3. Oil Requirements
|
Type |
Requirement |
|
Gasoline Engine Fuel |
Must use pure gasoline: Gasoline grade 92# |
|
Lubricating Grease |
Kluberlub BE 41-1501 or general lithium-based lubricating grease |
4. Operating Procedures
|
Procedure Type |
Specific Operations |
|
Preparation Before Use |
1. Check whether the fuel and lubricating oil of the gasoline engine meet the specified requirements. |
|
2. Check whether the starting mechanism and various components are loose (especially whether the grinding wheel is firmly installed, free of cracks, and whether the linear speed meets the requirements). |
|
|
3. Check whether the main shaft clearance is too large. |
|
|
4. Check whether the clearance of the feed mechanism is normal. |
|
|
5. Check whether the safety shield is firm and reliable. |
|
|
Machine Use |
1. Open the fuel valve, close the choke, push the throttle handle to the low-speed position, pull the recoil starter handle to confirm it is normal, push the flameout switch to the ON position, pull the recoil starter handle quickly to start the machine. After the machine runs, return the choke to the original position, and increase the speed for grinding operation only after the warm-up is normal. |
|
2. Wear safety protective equipment as required during operation. |
|
|
3. Adjust the feed grinding amount slowly during operation. Avoid the grinding wheel hitting the rail to prevent danger. If there is abnormal noise, stop the machine immediately for inspection and continue the operation after handling it. |
|
|
Shutdown |
1. Push the throttle handle to the low-speed position, turn off the flameout switch to the OFF position, and close the fuel valve. |
|
2. Rotate the grinding wheel feed handle in the reverse direction to return the grinding wheel to the highest position. |
