SUN-I Mobile Ultrasonic Flaw Detector for Hollow Axles
- Category： Railway Maintenance Workshop Equipment
- Application: NDT for hollow axles
- Compatibility: 30~110mm probes
- Detect ranges: surface and internal defects
- Automation level: intelligent control
SUN-I Mobile Ultrasonic Flaw Detector for Hollow Axles
1. Brief introduction:

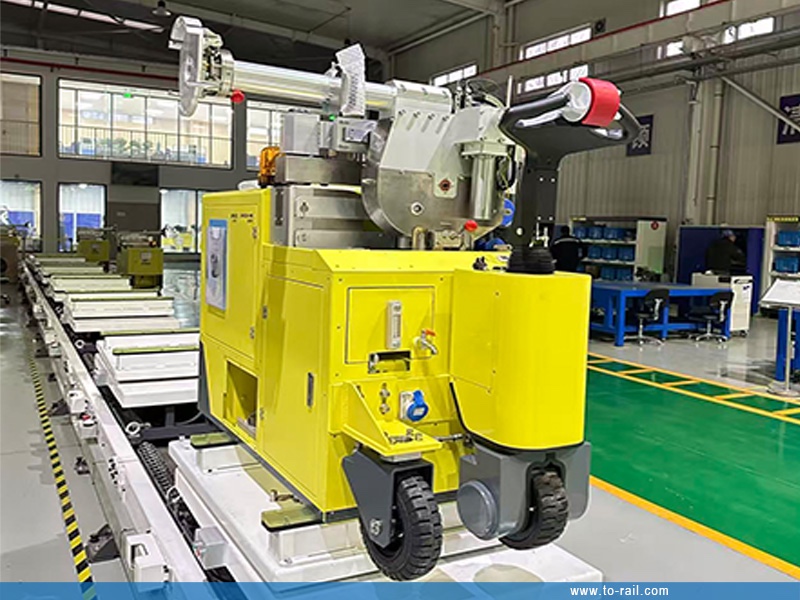

The SUN-I Mobile Ultrasonic Flaw Detector is an automated non-destructive testing (NDT) device specifically designed for detecting surface fatigue defects and internal volume defects of EMU hollow axles. It is a core maintenance equipment for high-speed rail safety, and also applicable to locomotive manufacturing plants and metro (hollow axle) inspection fields. The device features independent R&D core technology, compact structure and high detection accuracy.
2. Core structure & features:
|

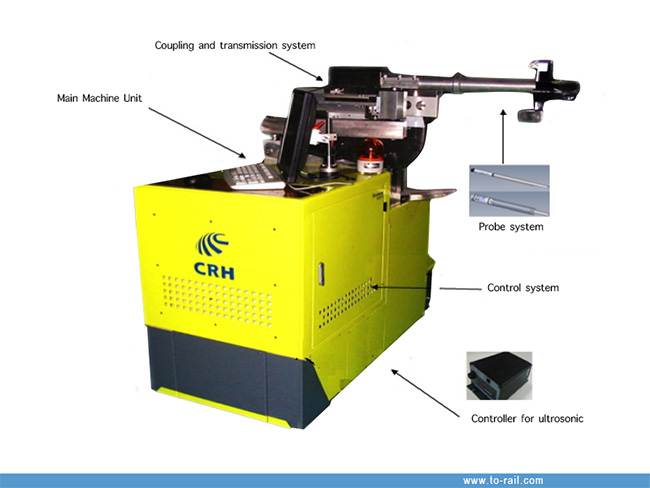

Structure Module |
Key Features |
|
Ultrasound Controller |
Independent R&D core, with hardware detection circuit and self-developed software; emits/receives ultrasonic signals, processes data and uploads information; passed Jiangsu Provincial New Product & Technology Identification. |
|
Probe System |
Innovative structure, stable balance and accurate centering; with sealed rotary oil chamber, dual oil circuit recovery system and guiding pulley; oil-tight, good coupling effect; localized probe passed technical review. |
|
Coupling Transmission System |
Integrated design with independent IP; quick locking device for easy operation; compatible with 30~110mm diameter probe systems, adaptable to different axle inner holes. |
|
Flaw Detector Control System |
Integrated with ultrasound controller and mechanical parts; independent IP; consists of data processing, transmission control and display operation units. |
|
Mechanical Overall |

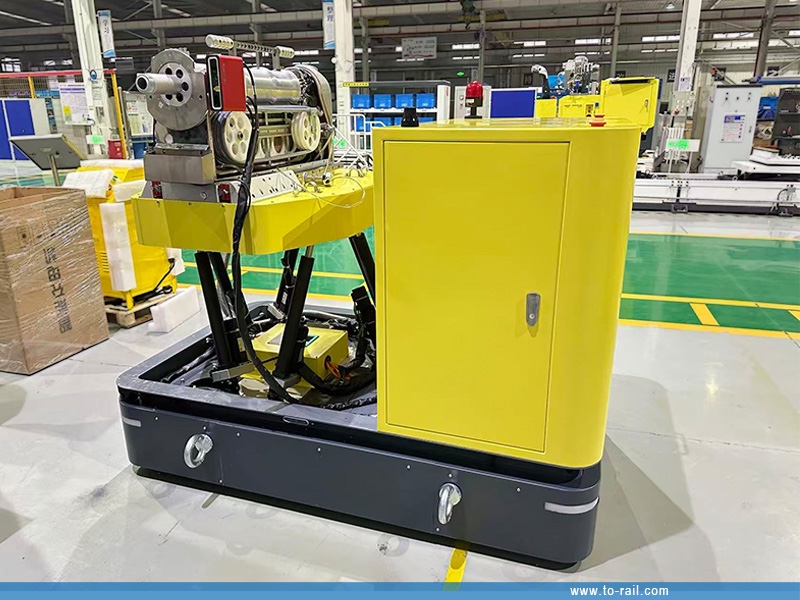

Composed of main body, transmission mechanism and traveling mechanism; compact, lightweight and easy for on-site operation. |
3. Core advantages of hollow axle ultrasonic flaw detector:
- Independent R&D core: self-developed ultrasound controller, breaking foreign monopoly, certified by Jiangsu Provincial New Product & Technology Identification (July 2013).
- Innovative probe system: sealed rotary oil chamber, dual oil circuit recovery, guiding pulley; oil-tight, good coupling, reliable localized probe.
- Flexible coupling transmission: integrated design (independent IP), quick locking, compatible with 30~110mm probes, easy to switch.
- Intelligent control system: integrated with self-developed controller, independent IP, full-process intelligent detection.
- Compact mechanical structure: lightweight, small-sized, easy for on-site operation.
- Wide application: suitable for EMU, locomotive manufacturing and metro hollow axle inspection.
