EMU Fixed Ultrasonic Test Machine for Railway Hollow Axle
- Category： Railway Maintenance Workshop Equipment
- Feeding Mechanism Stroke:1500mm
- Rotation Angle:±90º
- Positioning Accuracy (X/Y/Z Axis):<0.5mm
- Single Axle Operation Time: ≤10min
EMU Fixed Ultrasonic Test Machine for Railway Hollow Axle
1. Brief introduction:
Fixed Ultrasonic Test Machine for Railway Hollow Axle is core equipment designed for the non-destructive testing of fixed axles (e.g., EMU hollow axles). It integrates advanced ultrasonic testing technology and automated operating systems to achieve full-process, high-precision detection of internal and surface defects in axles.
2. Function features:
- Automatic docking and verification of sample axles
- Automatic wheel set locking and release
- QR code scanning to obtain axle information
- Automatic acquisition of axle spatial attitude
- Automatic cleaning of hollow axle inner hole
- Automatic docking and flaw detection of flaw detector

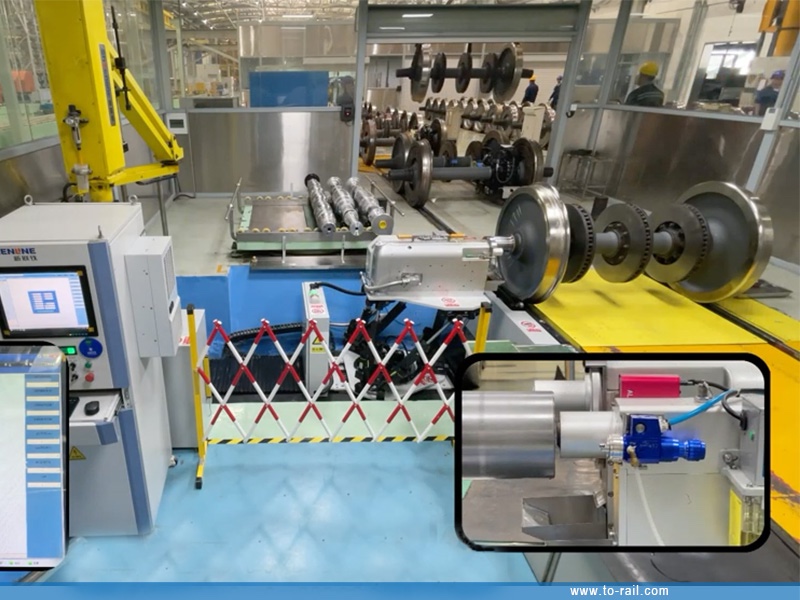

3. Structural features:

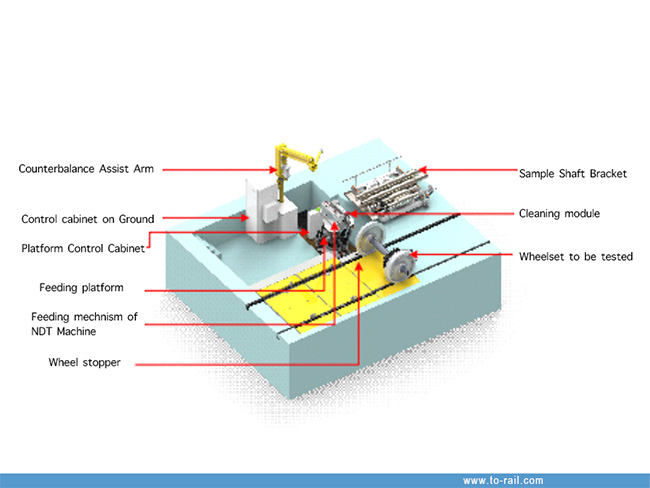

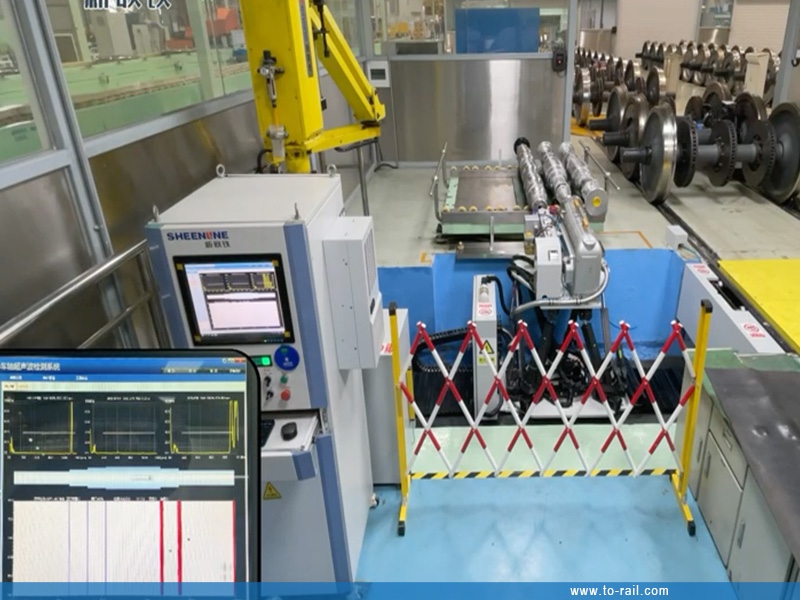

The EMU Fixed Ultrasonic Test Machine for Hollow Axle is mainly composed of a ground control cabinet, a power-assisted balance arm, a wheel stopper (newly added), a platform control cabinet (newly added), a feeding platform (newly added), a 6-degree-of-freedom platform (newly added), a cleaning module (newly added), a flaw detector feeding mechanism, an oiling system (newly added), a sample axle bracket and other accessories.
4. Technical parameters of Fixed Ultrasonic Test Machine:
|
No. |
Item |
Parameter |
|
1 |
Feeding Mechanism Stroke |
1500mm |
|
2 |
Rotation Angle |
±90º |
|
3 |
Positioning Accuracy (X/Y/Z Axis) |
<0.5mm |
|
4 |
Single Axle Operation Time |
≤10min |
|
5 |
Oil Coating Deviation |
<10% |
|
6 |
Wireless Transmission Distance |
>10m |
|
7 |
Detectable Axle Hole Diameter |
30,40,60,65mm |
|
8 |
Max Power |
4kW |
|
9 |
False Judgment Rate |
≤10% |
|
10 |
Miss Detection Rate |
0 |
