Metro & EMU Wheelset Bearing Running-in Test Bench
- Category： Railway Maintenance Workshop Equipment
- Applicable wheel diameter: 750~920mm
- Total Power:≤15 kW
- System air pressure:0.65MPa
- Rotation speed: ≤480 r/min
Metro & EMU Wheelset Bearing Running-in Test Bench
1. Brief introduction:

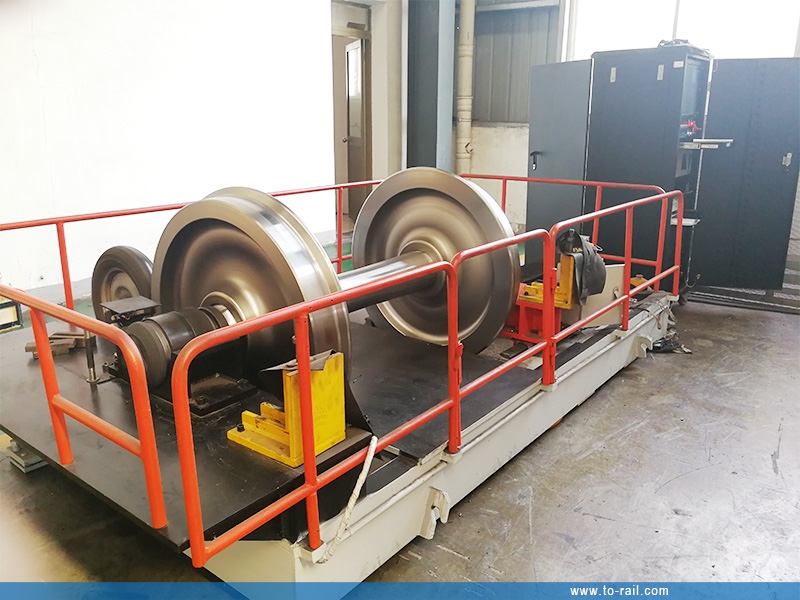

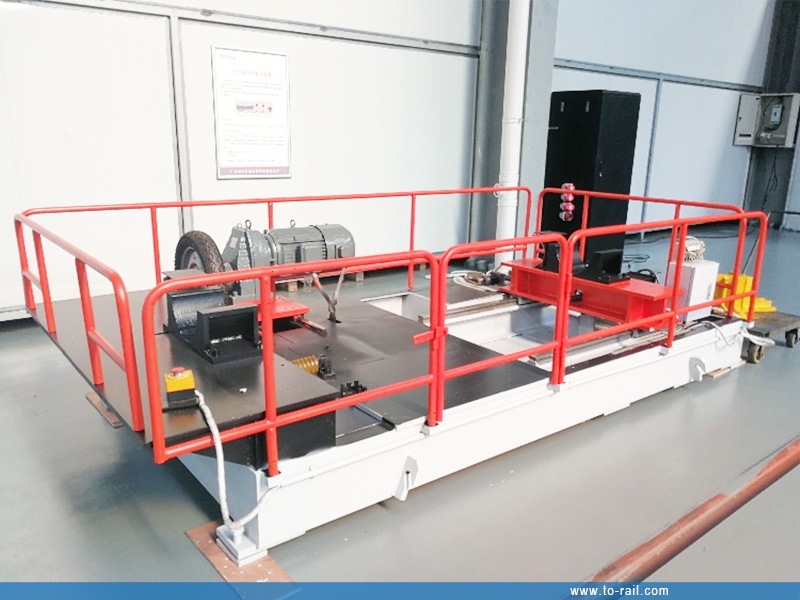

Our Metro & EMU Wheelset Bearing Running-in Test Bench is a high-performance, reliable testing equipment specially designed for running-in tests of wheelsets used in urban metro, light rail, passenger cars, EMUs and other rail vehicles. It integrates advanced mechanical, hydraulic and electrical control technologies, ensuring comprehensive detection of wheelset performance and providing strong support for the safety and stability of rail transit operation.
2. Core Advantages:
• Foundation-free Installation: No need for special foundation construction, easy to move and replace the installation site, saving time and cost for your workshop layout.
• Wide Adaptability: Adjustable applicable gauge (1000—1676 mm) and compatible with various wheelset specifications (wheel diameter Φ750～920 mm, total length ≤2850 mm, etc.), suitable for multiple rail vehicle types.
• Comprehensive Testing Functions: Supports running-in tests for wheelsets with brake discs and axleboxes, with soft start, speed change, braking functions, and adjustable friction pressure, braking force and running-in time.
• Intelligent Monitoring & Alarm: Equipped with left and right axlebox bearing temperature detection (0～100 ℃, accuracy ±1℃), with over-temperature and over-speed alarm functions to ensure safe operation.
• Intelligent Data Management: Computer display screen shows and stores detection data in real time, which can be output at any time; it has long-term storage and recovery functions of basic data, and can automatically judge whether the running-in is qualified.
• High Safety & Reliability: Equipped with emergency stop function, safety interlock device, short circuit, open circuit and leakage protection devices, ensuring comprehensive protection during equipment operation.
• Easy Operation & Maintenance: Simple and easy-to-understand program, convenient operation and maintenance; the software has functions such as equipment fault self-diagnosis, parameter setting, data management and calibration.
3. Main Technical Parameters:
|
No. |
Item |
Parameter |
|
1 |
Applicable gauge |
1000—1676 mm (adjustable) |
|
2 |
Tested wheelset weight |
≤2200 kg |
|
3 |
Applicable wheel diameter |
Φ750～920 mm |
|
4 |
Applicable wheelset inner distance |
924～1600 mm |
|
5 |
Applicable wheelset total length |
≤2850 mm |
|
6 |
Applicable axlebox center distance |
1500～2250 mm |
|
7 |
Applicable wheelset condition |
With brake discs and axleboxes |
|
8 |
Total power |
≤15 kW |
|
9 |
System air pressure |
0.65 MPa |
|
10 |
Grinding wheel driving torque |
Adjustable (adjusted by wheel pressure) |
|
11 |
Rotation speed |
≤480 r/min |
|
12 |
Running-in time |
10 minutes for forward and reverse rotation each |
|
13 |
Axlebox bearing temperature detection head |
1 on each side (left and right) |
|
14 |
Temperature measurement range |
0～100 ℃ |
|
15 |
Temperature measurement accuracy |
±1℃ |
|
16 |
Overall dimension (L×W×H) |
2650×1650×1110 mm |
|
17 |
Equipment weight |
1.45 t |
|
18 |
Power supply |
AC220/380V±10%, 50Hz±2% |
