Mobile Railway Lifting Jacking Machine Professional Lifting Solution for Rail Transit Maintenance

Mobile Railway Lifting Jacking Machine Professional Lifting Solution for Rail Transit Maintenance

1. Product Overview:

Mobile Railway Vehicle Lifting Jacking Machine is a flexible, movable dedicated lifting system designed for maintenance depots. It is mainly used for precise integral or partial lifting of rail transit vehicles. Adopting mechanical drive and adjustable supporting structure, it ensures safe and stable lifting of the car body. Equipped with manual hydraulic moving and traveling function, it adapts to various vehicle types and maintenance stations, greatly improving maintenance flexibility and efficiency.

This jacking system can lift single or double-section vehicles. When equipped with sufficient units, it supports synchronous lifting of an entire train set without uncoupling, making it ideal for bogie replacement and underframe component maintenance.

2. Core functions:

Safe lifting and lowering of train bodies to create open undercarriage working space for full maintenance: inspection, disassembly, repair, overhaul and replacement of bogies, brake systems, electrical equipment, pneumatic pipelines and more. Widely used for locomotives, engineering vehicles, metro trains and EMUs

3. Product advantages:

• Intelligent synchronous control real-time digital display of lifting height; Advanced synchronous control with automatic deviation correction;
• Automatic stop and alarm in case of sync failure;
• All-round Safety Protection: Upper and lower limit protection with automatic shutdown and alarm;
• Multiple safety interlocks and electrical interlocks;
• Fault self-diagnosis with real-time display;
• Automatic monitoring of screw-nut wear and anti-dislocation.
• Stable, Durable & Easy Maintenance
• Screw-nut lifting mechanism with self-locking function;
• Automatic lubrication system to reduce wear and extend service life;
• Support head with manual lateral adjustment for fast and accurate alignment.

4. Mature & Reliable Design

• Modular design based on proven technology;
• Mature synchronous control and transmission system;
• High-safety, easy-operation and easy-maintenance structure;
• Key components from internationally renowned brands;
• PLC control system with redundant limit and sensors for dual safety protection.

5. Main Technical Parameters：

6. Structure Introduction

The mobile jacking machine consists of mechanical system and electric control system:

Mechanical system: main frame, bearing structure, support head, transmission assembly, traveling mechanism

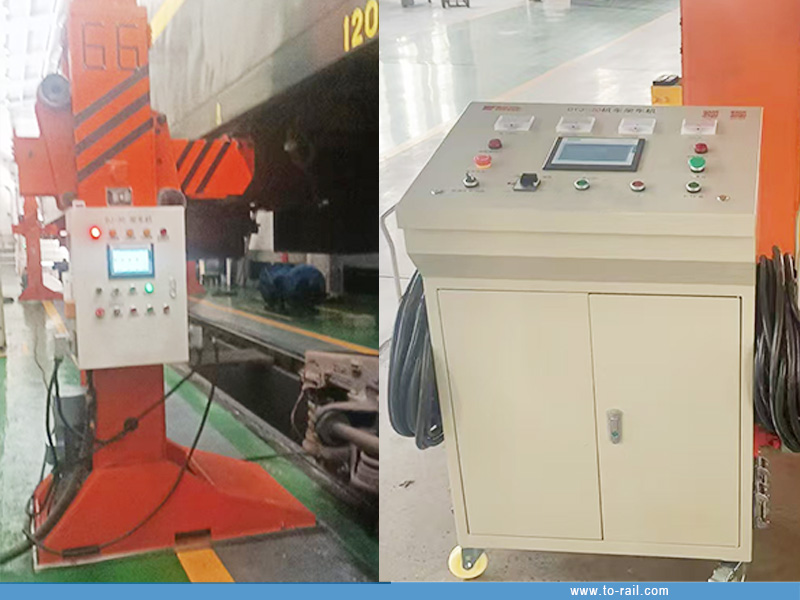

Electric control system: control console, local control box, field electrical equipment

7. Detail photos:

8. Video:
