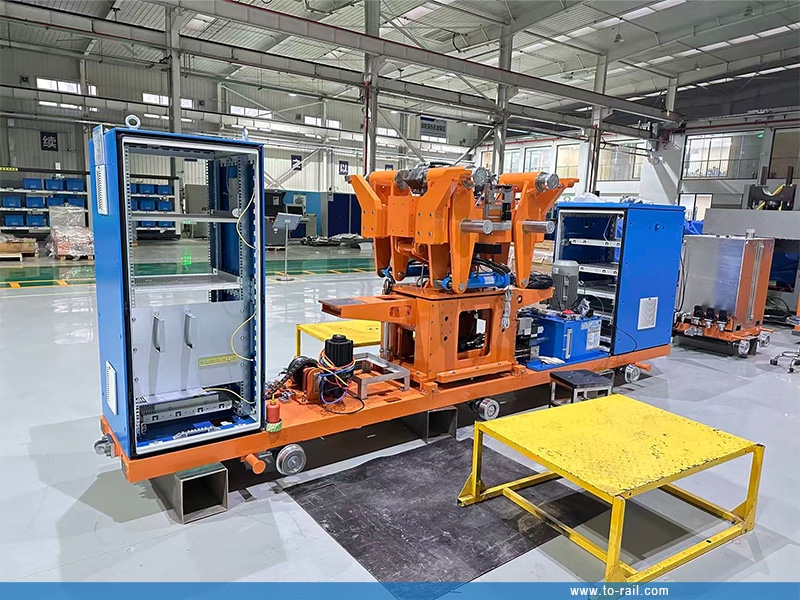

Mobile Ultrasonic Flaw Detector for Locomotive Wheel Rim and Spoke (Online)

Mobile Ultrasonic Flaw Detector for Locomotive Wheel Rim and Spoke (Online)

1. Product Function

The Mobile Ultrasonic Flaw Detector for Locomotive Wheel Rim and Spoke (Online) is applied to the online flaw detection and scanning of high-power locomotive wheels. It can detect various directional defects and internal volume defects on the wheel flange, wheel rim and web.

2. Product Features

• Mobile type, adopting 64/256 (or 32/128) channel phased array flaw detection technology.
• Automatic flaw detection equipment, applicable to HXD series / HXN series / SS series / DF series.
• Online flaw detection and scanning of all types of locomotive wheels (including Harmony, Shaoshan, Dongfeng series, etc.) can be completed without disassembling the locomotive bogie.
• Adopting robot technology with flexible movements, it can complete wheel scanning without disassembling the sand pipe and obstacle deflector.
• The flaw detection trolley can complete the flaw detection of all wheels with one forward pass, without the need for interval wheel flaw detection and U-turn reverse operation, which greatly simplifies the flaw detection process and reduces the number of auxiliary flaw detection personnel.
• Equipped with manual teaching mode to adapt to the wheel set space at the bottom of bogies of different models.
• Adopting phased array ultrasonic testing technology, it features flexible scanning and can adapt to the detection of wheels of different shapes.
• Water coupling is used for flaw detection, which is low in cost and pollution-free.
• The product has completely independent intellectual property rights and can be customized according to user needs.
• The probe is designed with a special water supply and water storage tank, ensuring stable coupling effect.

3. Equipment Technical Parameters

4. Video：
