First-Class Lotus Seat High Speed Train Seat

Category： Coach Interiors
Application: train first class seat
Motion Structure:Cradle linkage
Installation Pitch (Vehicle-Mount):1160 mm
Backrest Initial Angle:98°
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

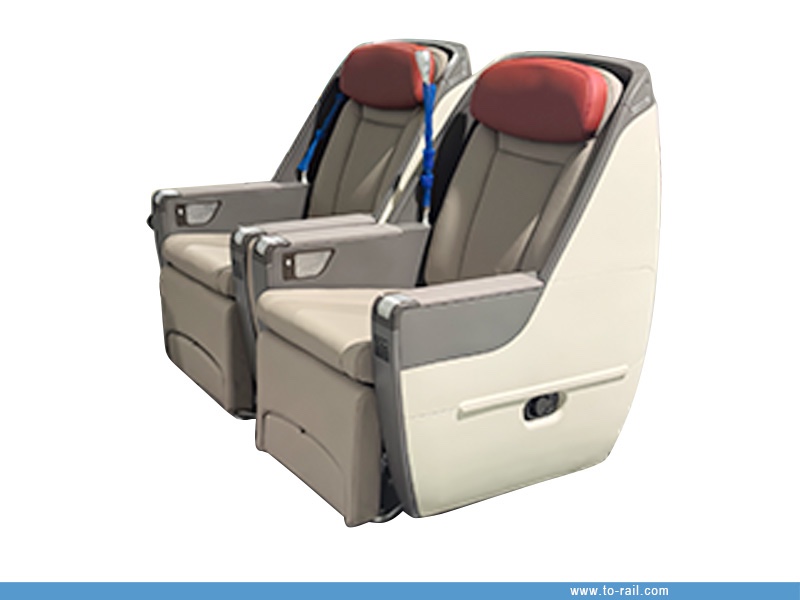

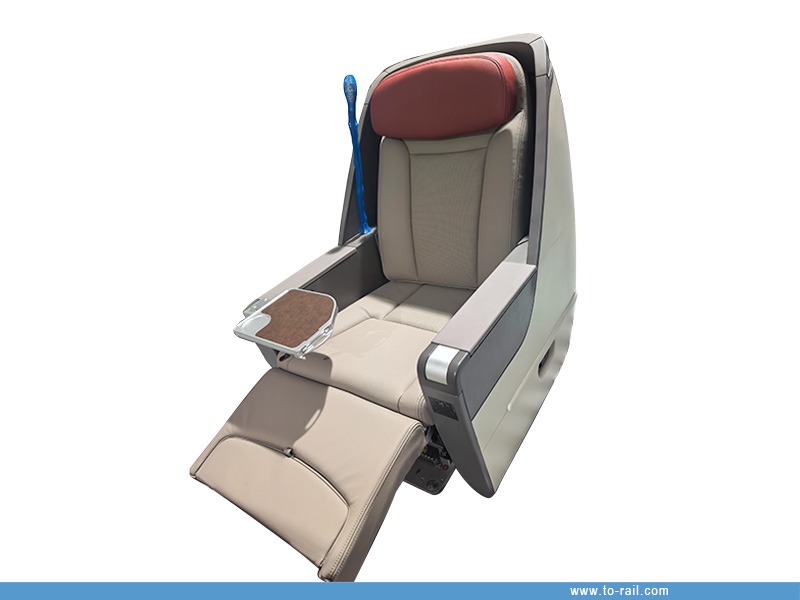

First-Class Lotus Seat High Speed Train Seat

1. Brief introduction:

The First-Class Lotus Seat is a premium cradle-type railway passenger seat developed with imported and innovative technology. Adopting a cradle-linkage motion structure, it delivers superior riding comfort for high-speed rail first-class cabins. Optimized for 1160 mm vehicle-mount installation pitch, this seat integrates ergonomic dimension design and full-electric adjustment functions to bring passengers a relaxed, high-end travel experience.

2. Main dimensions:

Item	Specification
Motion Structure	Cradle linkage
Installation Pitch (Vehicle-Mount)	1160 mm
Seat Height	440 mm
Seat Width	475 mm
Seat Depth	475 mm
Backrest Initial Angle	98°
Max. Backrest Recline Angle	124°

3. Seat functions:

Item	Specification
Seat Rotation	Foot-pedal unlocking
Leg Rest	Electric leg rest (standard)
Rear Footrest	Stepless adjustable
Armrest	Fixed type
Dining Table	Built-in front table inside armrest
Coat Hook	Press type
Grab Handle	Backrest-mounted
Posture Adjustment	Electric button control

4. Main features:

Cradle-linkage reclining system — The backrest tilts up to 124° with cradle-linkage movement, effectively reducing body pressure and bringing a comfortable semi-reclining posture for long-distance trips.
Electric leg rest & stepless rear footrest — Standard-fitted electric leg rest, together with a stepless-adjustable rear footrest, fully releases lower-limb pressure for enhanced passenger comfort.
Built-in front dining table inside armrest — The unique lotus seat design integrates the dining table inside the fixed armrest. The fold-away table saves cabin space while offering a convenient onboard dining & working surface.
Fixed armrest + backrest grab handle — Robust fixed armrest matched with a back-mount grab handle ensures safe passenger support during vehicle operation; press-type coat hooks are pre-installed for hanging personal belongings.
Complete intelligent electric control system — Equipped with a dedicated controller and DC motor for stable, smooth seat posture adjustment. Wireless charging, angle sensor and position sensor are available as optional upgrades.
