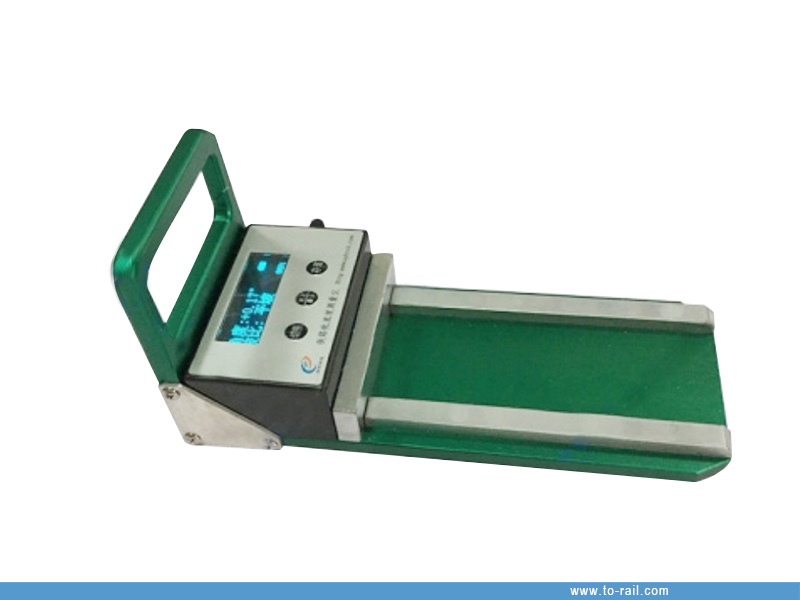

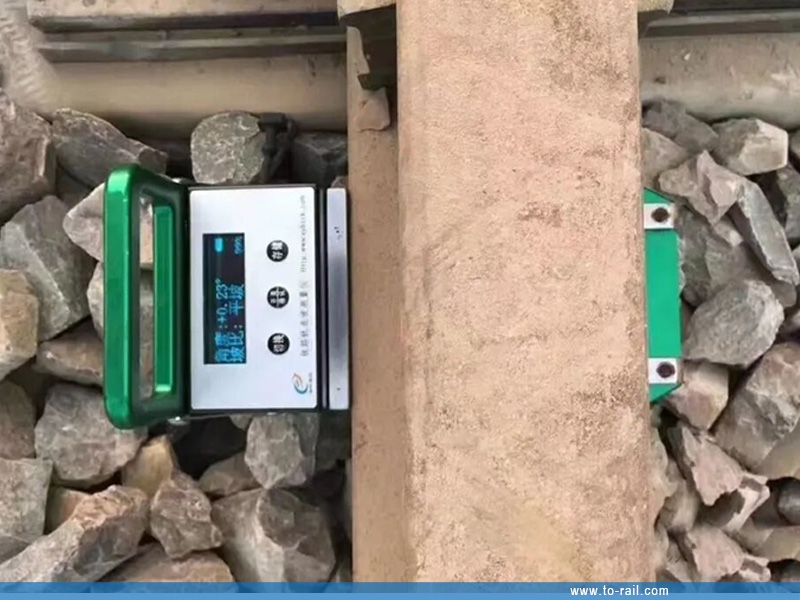

Rail Bottom Slope Measuring Instrument

Rail Bottom Slope Measuring Instrument

1. Brief introduction:

The rail bottom slope measuring instrument is a professional tool designed to detect the slope of rail bottoms. Since the main part of the wheel tread is a 1:40 slope, in order to make the top surface of the rail bear force evenly under the load of the wheel with a conical tread, reduce the load eccentricity, lower the rail web stress, and avoid longitudinal cracks at the connection between the rail head and the rail web, the rails on straight lines should not be laid vertically, but should be properly inclined inward. This inward inclination of the rail is called the rail bottom slope.

Our rail bottom slope measuring instrument is compact, accurate and durable, suitable for various railway maintenance and detection scenarios, providing reliable data support for railway safety operation.

2. Technical Parameters:

If you have any customization needs or questions about the product, please feel free to contact us, and we will provide you with professional solutions and high-quality after-sales service.
