0-Level Digital Track Gauge High Precision Static Track Inspection Tool
- Category： Track Maintenance Equipment
- Gauge measuring range: 1420~1470mm
- Maximum Error of Superelevation Indication: ±0.30mm
- Maximum Error of Gauge Indication: ±0.25mm
- Level (Superelevation) Resolution: ≤0.1mm
0-Level Digital Track Gauge High Precision Static Track Inspection Tool
1. Brief introduction:

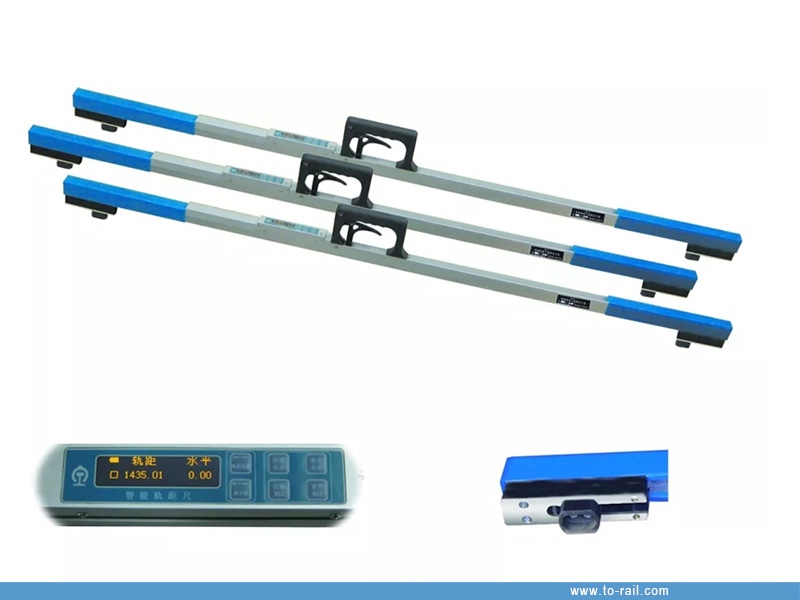

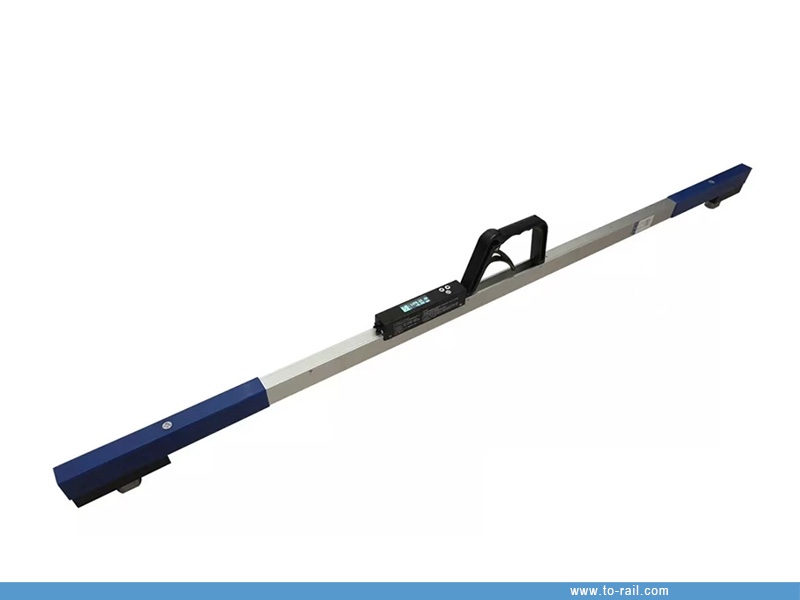

The 0-Level Digital Track Gauge is a high-precision static portable track inspection tool, composed of high-precision angle sensors, displacement sensors, display modules and precision transmission mechanical structures. It is mainly used for detecting geometric parameters such as gauge, level, super elevation, check gauge and back gauge of straight lines, curves and turnouts on standard gauge (1435mm) lines. With its compact design and high measurement accuracy, it is an essential tool for railway maintenance and inspection, ensuring the safety and stability of railway operation.
2. Technical parameters:
|
Parameter Item |
Specification |
|
Gauge Measuring Range |
1410～1470mm |
|
Superelevation Measuring Range |
-185～+185mm |
|
Check Gauge Measuring Range |
1381～1401mm |
|
Back Gauge Measuring Range |
1338～1358mm |
|
Maximum Error of Superelevation Indication |
±0.30mm |
|
Maximum Error of Gauge Indication |
±0.25mm |
|
Level (Superelevation) Resolution |
≤0.1mm |
|
Applicable Working Environment |
-40℃～+60℃ |
|
Length |
1600mm |
