10T/20T Manual Bogie Turntable Bogie Maintenance Workshop Equipment
- Category： Railway Maintenance Workshop Equipment
- Turntable loading capacity: 10t, 20t
- Turntable Diameter:3600mm or customized
- Operation Mode: manual
- Capacity: 1 bogie per time
10T/20T Manual Bogie Turntable Bogie Maintenance Workshop Equipment
1. Brief introduction:
Our 10T/20T Manual Bogie Turntable is a core auxiliary equipment specially designed for bogie maintenance workshops, widely applied in railway vehicle maintenance depots. It is mainly used for quick steering and horizontal transfer of bogies and wheel sets between tracks, providing precise position adjustment for subsequent bogie disassembly, inspection, assembly and other processes. With a power-free and manual operation design, the turntable features strong load-bearing capacity, stable rotation, simple structure and easy maintenance, which can effectively improve workshop maintenance efficiency, reduce manual labor intensity and ensure operation safety. It is compatible with two specifications of bogies (10T and 20T), meeting the diverse maintenance needs of overseas customers.
We adhere to strict quality control standards, all components are made of high-quality materials, and the product has passed relevant international certifications, with reliable performance and long service life. It is suitable for railway maintenance workshops, locomotive factories, subway maintenance centers and other scenarios, and has been exported to many countries and regions, well recognized by customers around the world.
2. Key technical parameters:
|
Parameter Name |
Specification |
Remarks |
|
Turntable Load Capacity |
10t, 20t |
Dual specification adaptation, switchable according to maintenance needs |
|
Turntable Diameter |
Φ3600mm |
Final size confirmed during design liaison |
|
Operation Mode |
Manual |
No external power supply required, easy to operate by single person |
|
Working Capacity |
1 bogie per time |
Adapts to mainstream bogie sizes, stable posture during transfer |
|
Positioning and Locking Device |
4 groups: 0°, 90°, 180°, 270° |
Precise alignment and locking to prevent turntable deviation |
|
Rail Alignment Error - Longitudinal Gap |
≤10mm |
Ensure smooth passage of bogies |
|
Rail Alignment Error - Rail Top Height Difference |
≤2mm |
Ensure smooth passage of bogies |
|
Rail Alignment Error - Joint Lateral Misalignment |
≤2mm |
Ensure smooth passage of bogies |
3. Main Components Introduction:

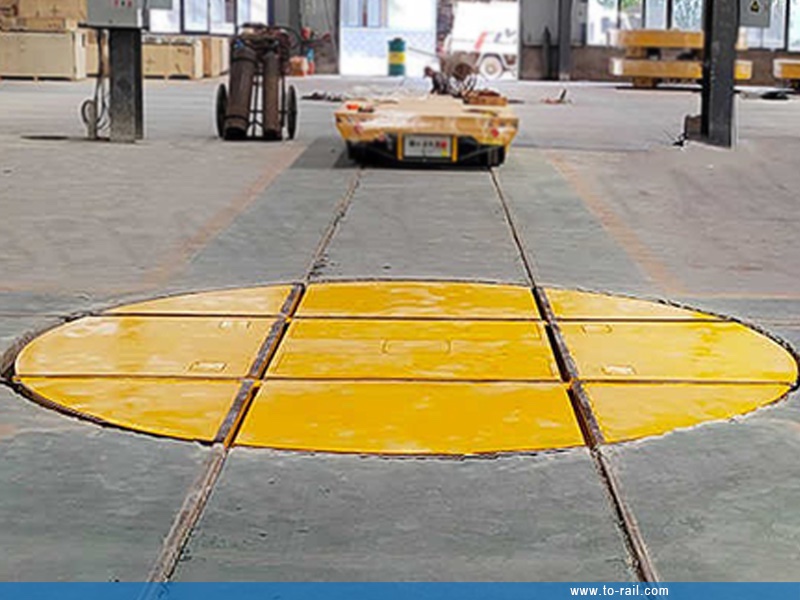

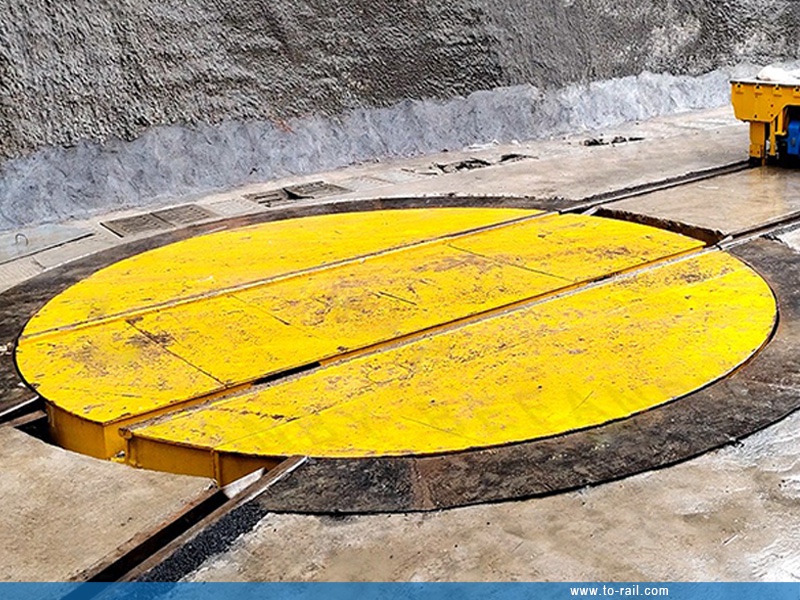

The bogie turntable mainly consists of turntable body, slewing support, auxiliary support, positioning device, wheel stopper and cover plate. The turntable body, welded with high-quality channel steel and steel plates, has rails in "#" shape. The slewing support is the core, ensuring stable rotation. 8 sets of auxiliary support wheels bear eccentric loads. The 7mm checkered cover plate ensures flatness and 5t forklift passage. The positioning device locks at 0°, 90°, 180°, 270° with ≤2mm error, preventing accidental rotation. All components work together for stable operation. (See corresponding figures for details.)
We provide customized services according to the specific needs of overseas customers, including size adjustment, material customization and other services. Welcome to contact us for more details and quotation!
