1. Brief introduction:

Our Digital Rail Wear Gauge is a high-precision measuring instrument specifically designed for detecting vertical and lateral wear of steel rails. Equipped with digital display for direct reading, it features a rational structural design that ensures light weight, easy operation and intuitive data reading, making it an essential tool for railway maintenance, inspection and daily management.

Suitable for various types of rails, the GMC-43/GMC-50/GMC-60/GMC-75 series digital rail wear gauges deliver accurate and reliable measurement results, helping you efficiently complete rail wear detection tasks and ensure the safe operation of railway lines.

2. Main technical indicators:

The GMC-43/GMC-50/GMC-60/GMC-75 digital rail wear measuring instruments are dedicated to the detection of vertical and lateral wear of steel rails. The vertical wear measurement position is at 1/3 of the rail head width, and the lateral wear measurement position is 16mm below the rail tread, complying with relevant industry standards and ensuring standardized measurement.

3. Technical parameters:

4. Operating Instructions

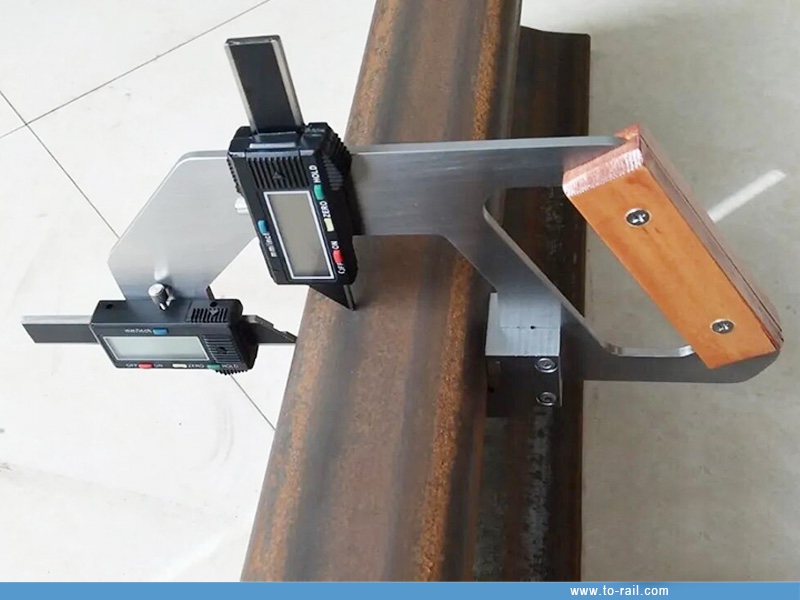

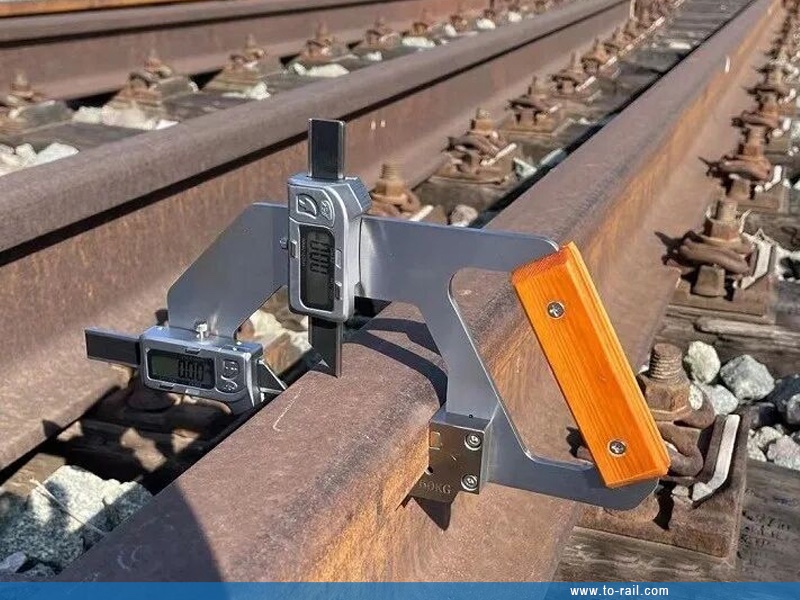

• Hold the handle firmly and position the wear gauge on the outer side of the measured rail, ensuring stable placement without shaking.
• Push the vertical wear measuring rod and lateral wear measuring rod respectively, so that their measuring heads are closely in contact with the top surface and inner side of the rail (ensure full contact to avoid measurement errors).
• After the display data is stable, directly read the vertical wear and lateral wear values from the digital display unit.

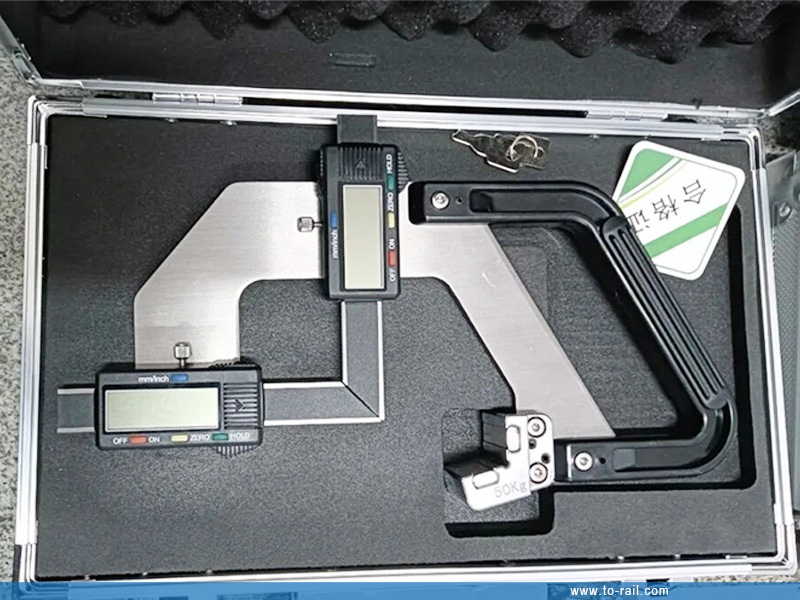

• After measurement, reset the measuring rods and store the instrument in a dry and clean environment to extend its service life.

5. Product Advantages

• High Precision: With instrument accuracy and reading resolution of 0.01mm, and repeatability error ≤ 0.05mm, ensuring accurate and reliable measurement data.
• Easy Operation: Light weight design and simple operation steps, no professional training required, suitable for on-site rapid measurement.
• Intuitive Reading: Digital display design, avoiding the error of manual reading, and the data can be read clearly at a glance.
• Durable and Practical: Made of high-quality materials, strong and wear-resistant, adapting to various harsh on-site working environments.
