Digital Display Switch Rail Wear Gauge Model TJC-60A

1. Brief introduction:

The TJC-60A Digital Display Switch Rail Wear Gauge is a professional measuring instrument designed for accurate detection of switch rail wear, widely applied in railway maintenance and inspection work. With its high precision, easy operation and wide adaptability, it provides reliable data support for ensuring railway operation safety and extending the service life of switch rails.

2. Technical parameters:

Parameter	Specification
Instrument Accuracy	0.05mm
Reading Accuracy	0.01mm
Repeat Error	±0.02mm
Measuring System	Digital Display Direct Reading System
Power Supply	3V Button Battery
Operating Temperature	-5℃ - 40℃
Storage and Transportation Temperature	Normal Temperature
Environmental Humidity	Forbidden to use in rainy days
Applicable Rail Types	43KG, 50KG, 60KG, 75KG, 43AT, 50AT, 60AT, 60D40

3. Usage Instructions:

Select the appropriate measuring ruler according to the measured object.

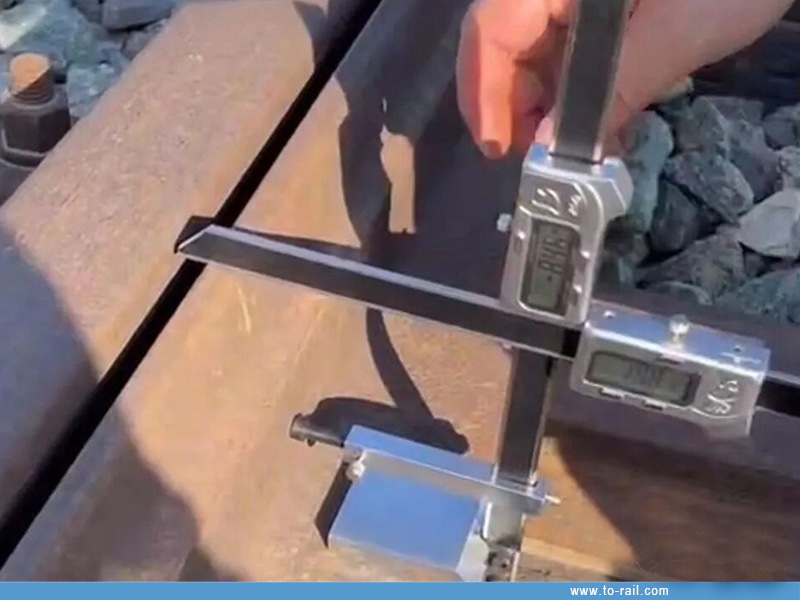

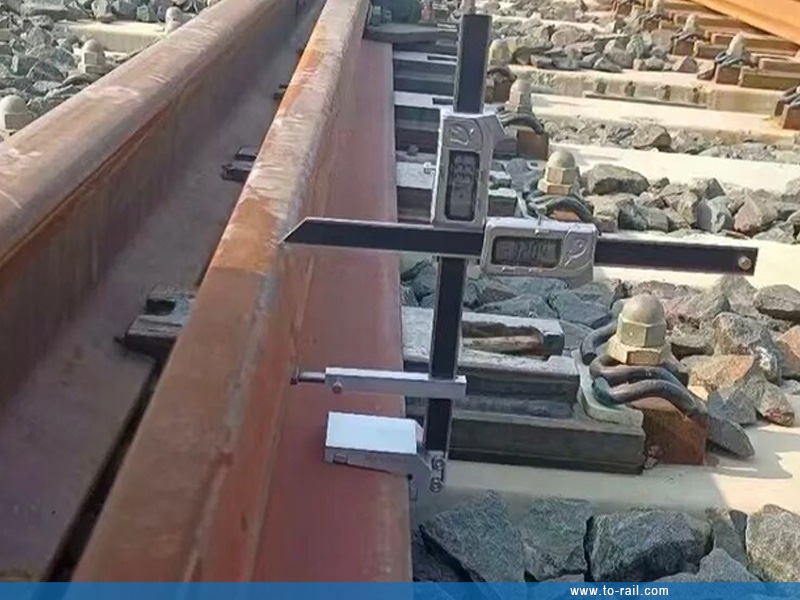

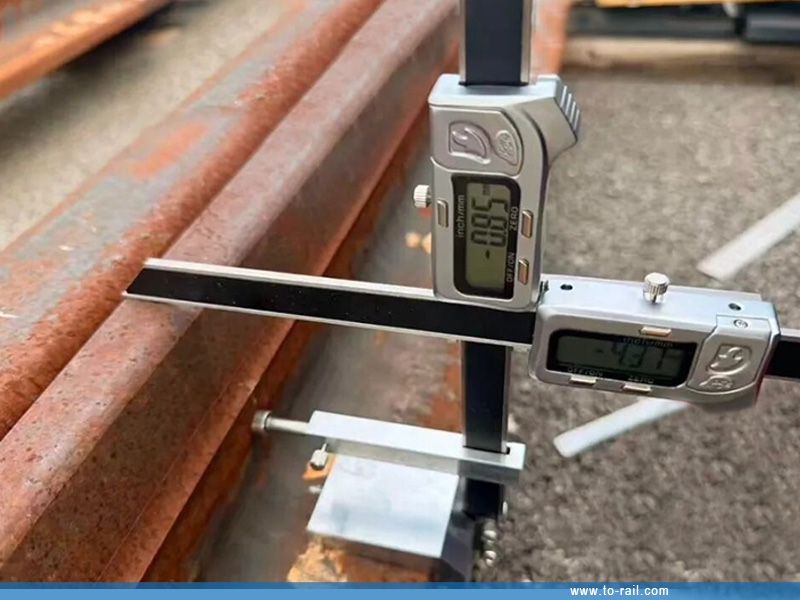

During use, attach the ruler base to the bottom of the switch rail and the middle support to the rail web (magnetic adsorption design ensures stable positioning).
Turn on the measuring meter and press the blue function key until the metric digital display appears.
Push the measuring crossbar to the working edge of the switch rail, read the data on the measuring meter, and record the measured data in the statistical table.
Remove the measuring ruler and move it to the next measuring point, and so on until the measurement of one switch rail is completed.
