Rail

Category： Track accessories
Application: railway
Production process: hot rolling and heat treatment
Length：12m, 12.5m, 18m, 25m,
Rail weight: 8kg/m~60kg/m
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

Rail UIC54/UIC60 AREA 115RE 136RE 60E1 38kg/m ~75kg/m

I. Brief introduction

Rails are the core load-bearing and guiding components of railway track systems, serving as the direct contact medium between train wheels and the track. They bear the dynamic loads (pressure, impact, and friction) of rolling stock, transmit loads to sleepers, ballast, and subgrade, and guide the train's running direction with their fixed gauge. As a key structural part of modern railways, their material performance, section design, and technical specifications directly determine the track's operational safety, speed capacity, load-bearing capacity, and maintenance cycle.

II. Core performance requirement：

Railway rails require ultra-high comprehensive mechanical properties to adapt to the harsh working conditions of long-term dynamic load and cyclic friction, with the following core technical requirements:

High strength & toughness: Resist plastic deformation, fatigue cracking, and brittle fracture under heavy load and impact (especially for high-speed and heavy-haul railways).
Wear resistance: Reduce surface abrasion caused by wheel-rail friction, extending the service life of rails and wheels.
Fatigue resistance: Withstand millions of cyclic dynamic loads without generating fatigue cracks (a key index for rail service life).
Weldability: Realize seamless rail welding (the mainstream form of modern railway tracks) to ensure stable connection strength and track smoothness.
Dimensional accuracy: Strict control of section size, straightness, and gauge matching to guarantee train running stability.

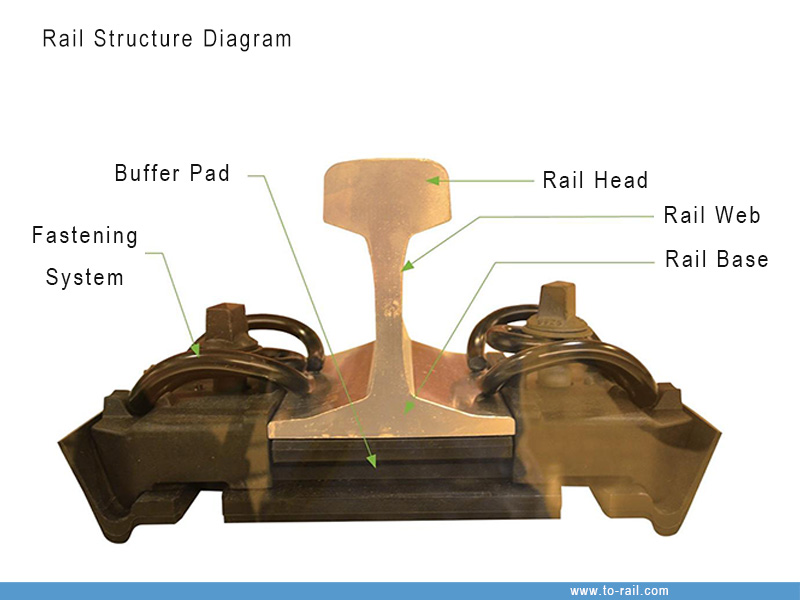

III. Detail Structure Parts of Rails:

IV. International rail types parameters table:

Executive standard	Grade	Weight Kg/m	Section dimensions (mm)
Executive standard	Grade	Weight Kg/m	Head width	Base width	Rail height	Web thickness
UIC860	UIC54	54.43	70	140	159	16
UIC860	UIC60	60.21	72	150	172	16.5
AREA	115RE	56.897	69.06	139.7	168.28	15.88
	136RE	67.41	74.61	152.4	185.74	17.46
	TR45	44.64	65.09	130.2	142.9	14.3
	TR50	50.35	69.26	136.5	152.4	14.3
EN1481	59R2	58.2	113	180	180	12
EN1481	60R2	59.75	113	180	180	12
EN13674	BS75A	37.46	61.91	114.3	128.59	12.7
	BS90A	45.11	68.74	127	142.88	13.89
	BS100A	50.18	69.85	133.35	152.4	15.08
	60E1	60.21	72	150	172	16.5
	60E2	60.03	72	150	172	16.5
	50E2	49.97	72	140	151	15
	54E1	54.77	70	140	159	16
	45E1	45.11	68.74	127	142.88	13.89
	R65	64.88	75	150	180	18
GB/T2585	38kg	38.73	67	114	134	13
	43kg	44.65	70	114	140	14.5
	50kg	51.51	70	132	152	15.5
	60kg	60.64	73	150	176	16.5
	75kg	77.41	75	192	205	20
