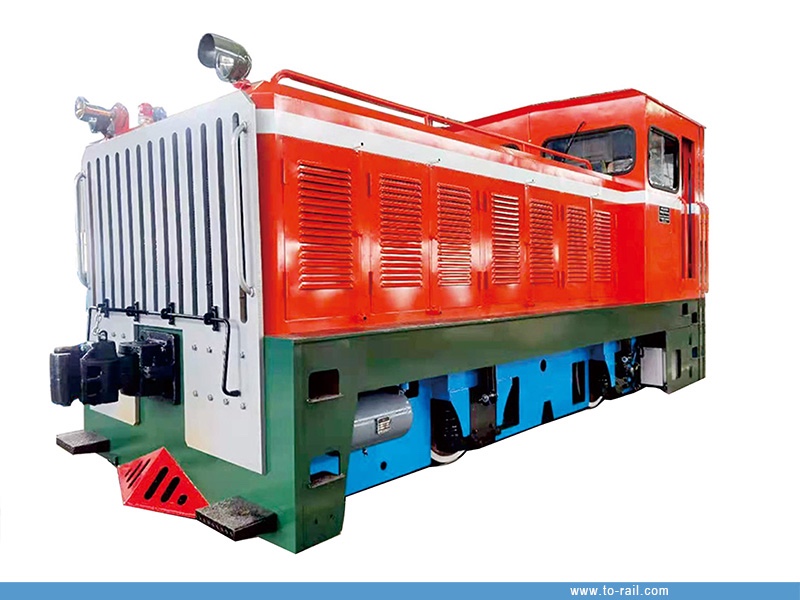

TJD320XF Pure Electric Shunting Locomotive 320HP Short Distance
- Category： Shunt Locomotive
- Model:TJD320XF
- Battery Capacity:≥220KWH
- Motor Rated Power:>200KW
- Design Speed: 20Km/h
TJD320XF Pure Electric Shunting Locomotive 320HP Short Distance
1. Brief introduction:
The TJD320XF pure electric locomotive is specially designed for short-distance transportation and shunting operations, serving as an eco-friendly switching locomotive and yard switcher suitable for industrial scenarios such as factories and mines.
This pure electric locomotive adopts DC-AC electric transmission, electronic reversing, electronic shifting, air braking and electric braking, ensuring smooth and efficient operation. Its power system is equipped with the most advanced lithium iron phosphate power battery pack, featuring zero pollution, low noise and maintenance-free performance—effectively reducing environmental impact and daily maintenance costs for customers.
As a reliable eco-friendly shunting locomotive and yard switcher, this pure electric locomotive boasts remarkable advantages including excellent performance, durability, long cruising distance, user-friendly operation and convenient maintenance. It is an ideal choice for enterprises pursuing green, efficient and low-cost short-distance transportation and shunting tasks
2. Main technical parameters:
|
Model |
TJD320XF |
|
Application |
Shunting and district transfer |
|
Battery type |
LiFePO4 Power battery |
|
Battery capacity(KWH) |
≥220 |
|
Motor rated power(KW) |
>200KW |
|
System voltage |
DC24V |
|
Design speed (km/h) |
20 |
|
Cruising range(Km) |
≥120 |
|
Min continuous speed (km/h) |
6 |
|
Traction effort at wheel rim (KN) |
80.3 |
|
Service weight(t) |
32 |
|
Axle load(t) |
16 |
|
Wheel diameter(mm) |
840 |
|
Track gauge(mm) |
1435 |
|
Axle arrangement |
0-2-0 |
|
Min radius(m) |
30 |
|
Transmission mode |
DC-AC electric transmission, |
|
Coupler type |
KD5 |
|
Coupler center height(mm) |
880 |
|
System voltage |
DC24V |
|
Braking |
Air brake+Parking brake |
|
Charge mode |
Dual gun, can be charged on both sides |
|
Dimensions(mm) |
7800*2800*3330 |
