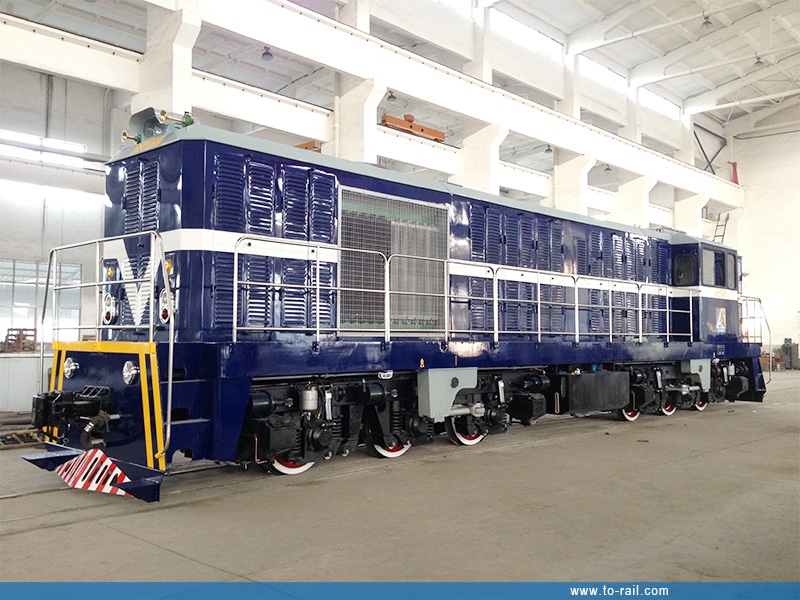

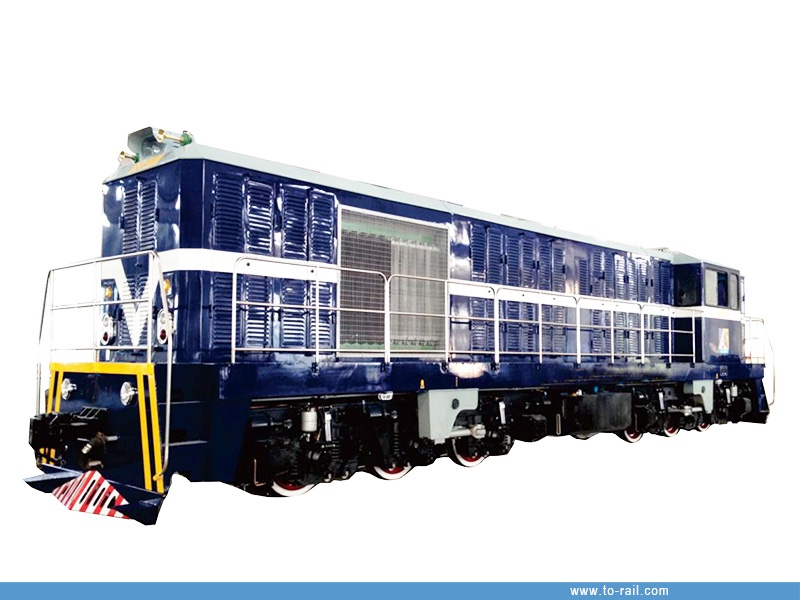

TJY1360F 1000KW Diesel-Hydraulic Switching Locomotive Yard Switcher
- Category： Shunt Locomotive
- Model:TJY1360F
- Rated Power:1000KW
- Design Speed:30km/h
- Traction effort at wheel rim: 280KN
TJY1360F 1000KW Diesel-Hydraulic Switching Locomotive Yard Switcher
1. Brief introduction:
The TJY1360F diesel-hydraulic switching locomotive, as a yard switcher, is a high-power switcher locomotive. It is designed for shunting and switching on standard gauge railways or district transfer tasks in large factories and local railways, perfectly adapting to high-intensity, large-volume industrial shunting needs for switching locomotive and yard switcher.
This industrial switching locomotive, is equipped with high-performance diesel engines such as Z12V190BJ6 or KTA38-C1350, delivering a reliable rated power of 1000KW. It adopts a PLC control system, which ensures stable, accurate and efficient control performance, while the hydraulic transmission system features hydraulic reversing and electronic automatic shifting, greatly simplifying operational procedures for the switching locomotive.
As a professional yard switching locomotive, the TJY1360F has good traction performance and boasts remarkable advantages, including big transport capability, high reliability, user-friendly operation and convenient maintenance. It is built to withstand harsh industrial environments, providing long-term stable service as a switching locomotive and yard switcher, and helping customers reduce daily operation and maintenance costs.
2. Main technical parameters:
|
Model |
TJY1360F |
|
Application |
Switching and district transfer |
|
Rated power(KW) |
1000 |
|
Design speed (km/h) |
30 |
|
Min continuous speed (km/h) |
7 |
|
Traction effort at wheel rim (KN) |
280.6 |
|
Service weight(t) |
100 |
|
Axle load(t) |
25 |
|
Wheel diameter(mm) |
915/1050 |
|
Track gauge(mm) |
1435 |
|
Axle arrangement |
B-B, C-C |
|
Min radius(m) |
80 |
|
Transmission mode |
Hydrodynamic transmission |
|
Coupler type |
Automatic coupler |
|
Coupler center height(mm) |
880 |
|
System voltage |
DC24V/DC110V |
|
Braking |
Mechanical brake, air brake |
|
Dimensions(mm) |
15360*3200*4255 |

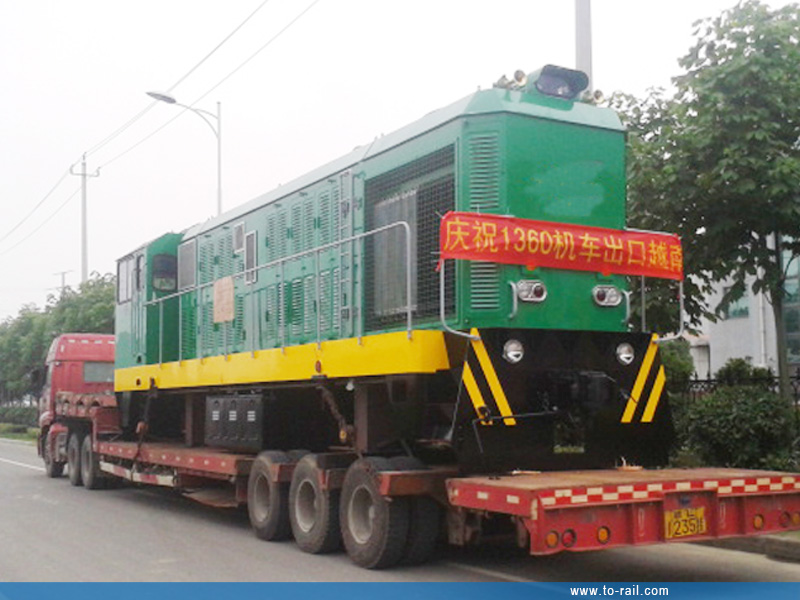

3. Delivery:
