CR400AF-C High Speed Train Business Seat Railway High-End Seat

CR400AF-C High Speed Train Business Seat Railway High-End Seat

Category： Coach Interiors
Application: high speed train
Seat width: 550mm
Backrest adjustment: 90° to 180°
Adjustment mode: Electric adjustment
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

CR400AF-C High-Speed Train Business Seat Railway High-End Seat

1. Product overview:

The CR400AF-C Business Seat is a high-end passenger seat designed for China’s Fuxing EMU. It combines ergonomic design, premium materials, intelligent functions, and strict railway safety standards to provide an excellent travel experience for long-distance high-speed rail passengers.

2. Key features:

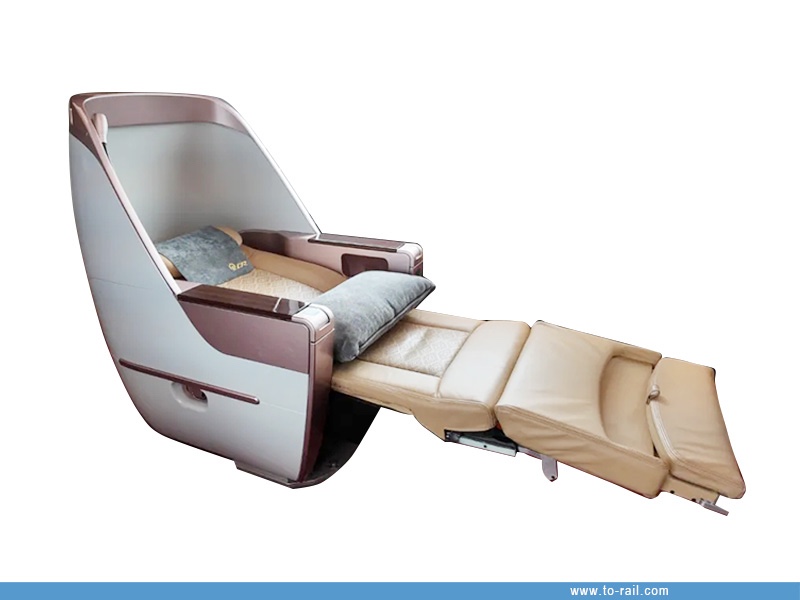

180° fully lie flat electric adjustment
Ergonomic structure with high comfort cushioning
Flame retardant, environmentally friendly interior materials
Integrated power supply, reading light, and small table
Stable structure, strong durability, and low maintenance cost
Compliant with international railway safety and comfort standards

3. Technical parameters:

Item	Specification
Layout	1+2 open layout
Seat width	Approx. 550 mm
Seat pitch	≥ 1600 mm
Backrest adjustment	90° to 180°
Adjustment mode	Electric adjustment
Frame material	High-strength aluminum alloy + steel
Operating voltage	DC 110V
Working temperature	-25℃ ~ +40℃

4. Material list:

Component	Material	Performance
Surface upholstery	Superfiber PU / high-grade faux leather	Flame retardant, wear resistant, easy to clean
Inner filling	High-resilience polyurethane foam	Comfortable, supportive, not easy to collapse
Seat frame	High-strength aluminum alloy & steel	Lightweight, high rigidity, strong load capacity
Armrest	ABS engineering plastic + leather cover	Anti scratch, durable, comfortable to touch
Headrest	Soft PU foam + faux leather	Height adjustable, good support
Footrest	Engineering plastic + metal support	Anti-slip, stable, durable
Small table	Flame retardant composite board	Load capacity ≥ 15 kg
Decorative parts	Flame retardant ABS/PC	Low odor, environmentally friendly
Sewing thread	High strength flame retardant polyester	High temperature resistance, not easy to break
Sound insulation layer	Non woven fabric + sound absorbing cotton	Reduce vibration and noise
