Rolling Bearing Disassembly Machine for Railway Freight Wagon Bogie Wheelset
- Category： Railway Maintenance Workshop Equipment
- Max. unloading force on side: 600 KN
- Applicable bearing outer diameter range:200~240mm
- Installed power: 11KW
- Working rhythm: ≤4 min/set
Rolling Bearing Disassembly Machine for Railway Freight Wagon Bogie Wheelset
1. Brief introduction:
Wheelset Rolling Bearing Disassembly Machine is a professional equipment specially designed for the disassembly of rolling bearings in axle boxes of railway freight wagons wheelsets. With high automation, stable performance and easy operation, it is widely used in railway maintenance workshops, freight yards, providing efficient and reliable solutions for railway equipment maintenance.
2.Main features:
Intelligent Control: adopts computer control system, supporting both automatic and manual operation modes. It has complete functions of data input, storage and output, which simplifies operation procedures and reduces labor intensity.
Versatile Application: suitable for on-line bearing disassembly of RB2, RD2, RE2, RF2 type wheelsets. It supports multiple working modes, including simultaneous disassembly on both sides, independent disassembly on either side, full-automatic disassembly and manual step-by-step disassembly, meeting diverse operation needs.
Stable & Efficient: equipped with high-performance hydraulic system, the maximum unloading force on one side reaches 600 kN, ensuring smooth and efficient disassembly. The unloading work rhythm is ≤4 minutes per piece, greatly improving work efficiency.

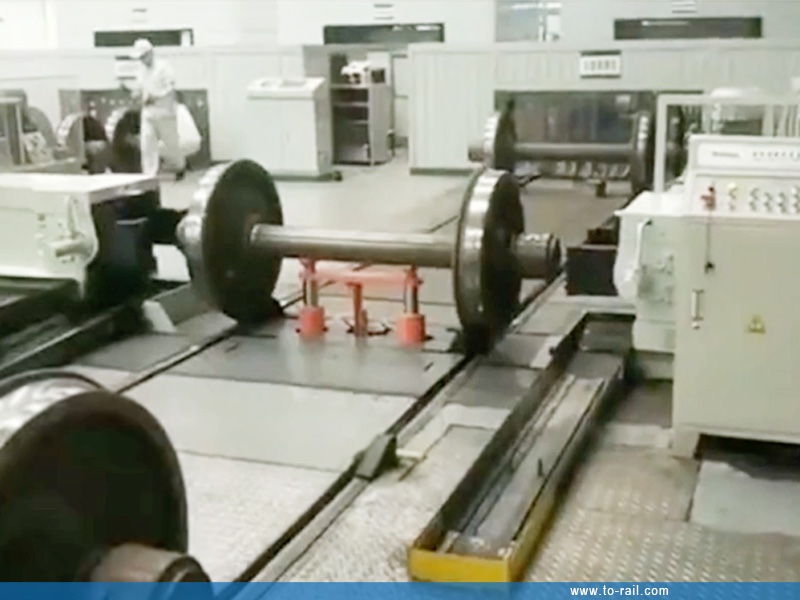

Humanized Design: the equipment is installed in the foundation, with the equipment rail flush with the track in the workshop, and the foundation cover plate flush with the workshop ground, ensuring safe and convenient operation and maintenance.
3. Main technical parameters:
|
No. |
Item |
Parameter |
|
1 |
Applicable Gauge |
1435 mm |
|
2 |
Maximum Unloading Force On One Side |
600 kN |
|
3 |
Applicable Wheel Diameter Range |
Φ760～950 mm |
|
4 |
Applicable Axle Length Range |
2062～2260 mm |
|
5 |
Applicable Axle Journal Range |
Φ120～160 mm |
|
6 |
Applicable Bearing Outer Diameter Range |
Φ200～240 mm |
|
7 |
Hydraulic System Regulating High Pressure |
16 Mpa |
|
8 |
Hydraulic System Regulating Low Pressure |
6.3 Mpa |
|
9 |
Equipment Installed Power |
11 kW |
|
10 |
Unloading Work Rhythm |
≤4 min/set |
|
11 |
Main Unit Dimension(L×W×H) |
5200×1020×1250 mm |
|
12 |
Equipment Weight |
3.9 t |
4. Main structure:

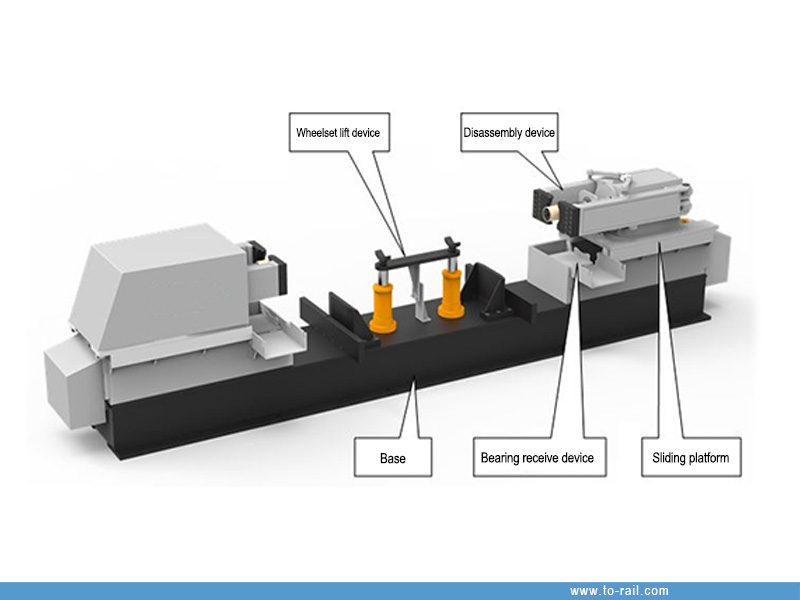

The equipment is composed of three main parts: the main machine of the bearing disassembly machine, the electrical control system and the hydraulic system. The main machine includes base, disassembly device, jacking mechanism, bed slide table, bearing blanking device, etc., which are reasonably structured and easy to maintain. The overall design conforms to the international railway equipment standards, ensuring stable operation and long service life.
We are committed to providing high-quality railway equipment and professional after-sales service. If you have any needs or questions about the product, please feel free to contact us, and we will reply to you as soon as possible.
