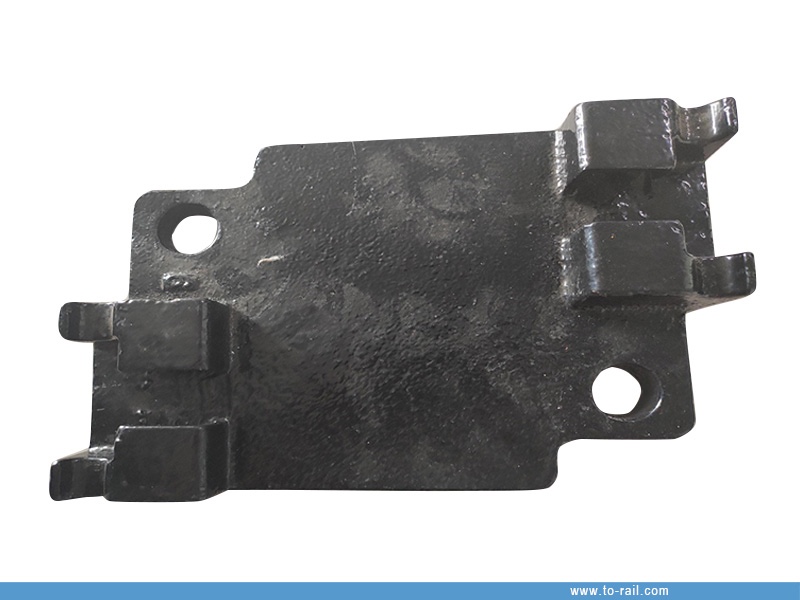

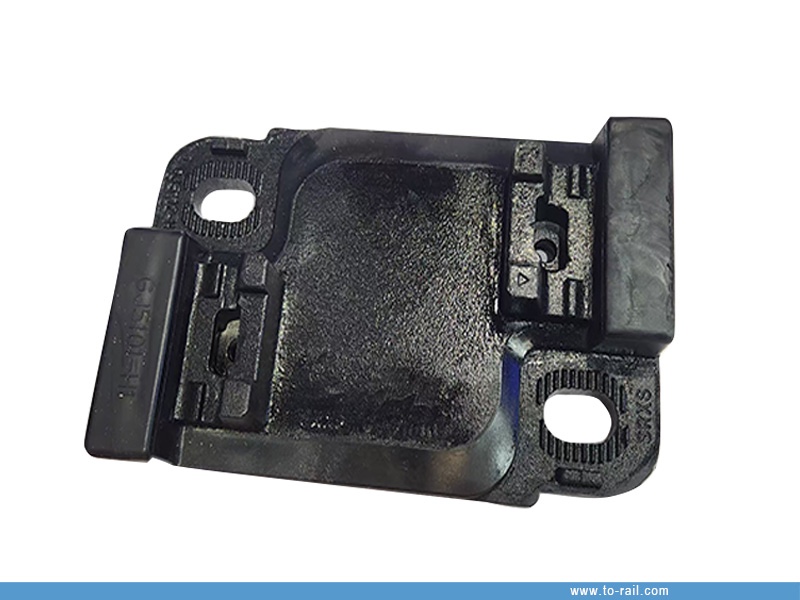

Under Rail Iron Base Plate Iron Pad

Under Rail Iron Base Plate Iron Pad

1. Brief introduction:

Our railway iron base plate is a high-quality core component for railway track systems, ensuring stable support, strong load-bearing capacity and long service life. It complies with international railway standards and is widely used in passenger, freight and urban rail transit lines.

Made of KTH350-10 malleable cast iron (meets GB/T 9440-2010 and TB/T 2630-1995), it has a tensile strength ≥350MPa and elongation ≥10%. Each unit weighs 8.49kg (±0.1kg), ensuring stable installation performance.

Strict quality control is implemented: the surface has clear factory mark, model and inner/outer identification. Casting defects (cracks, sand inclusion, air holes, etc.) are prohibited; pits with depth >2mm and diameter >5mm are not allowed, and acceptable pits are polished flat.

With reliable quality and compliance with international standards, our product is trusted globally. We offer customization per customer drawings and commit to high-quality products and professional after-sales support for your railway needs.

2. Technical parameters:

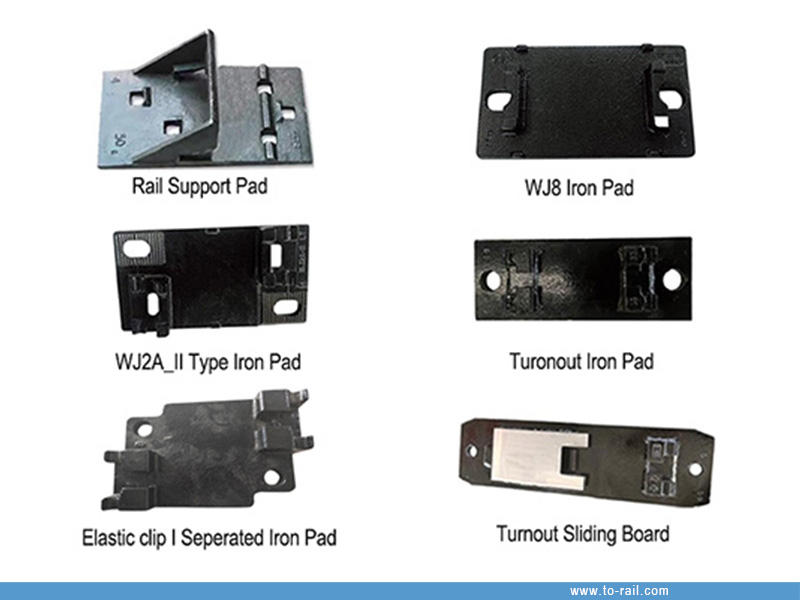

3. Various Iron Pad We produce:
