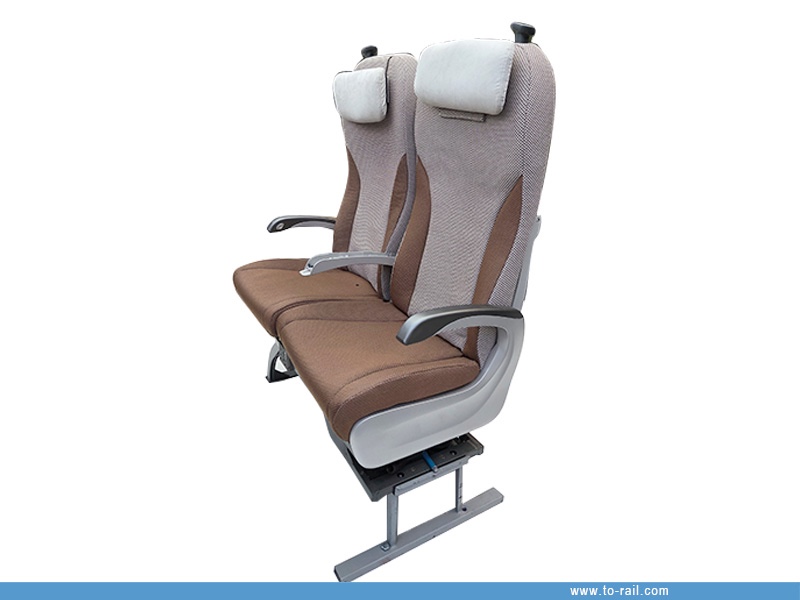

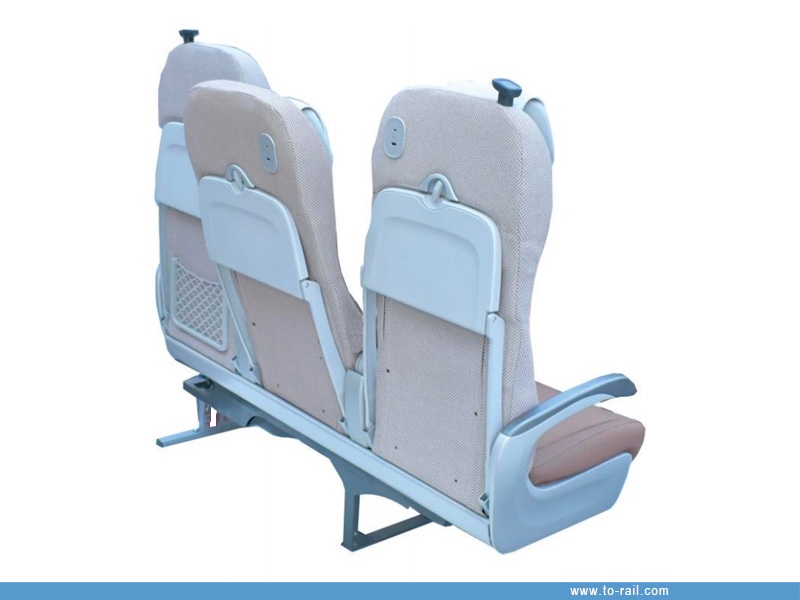

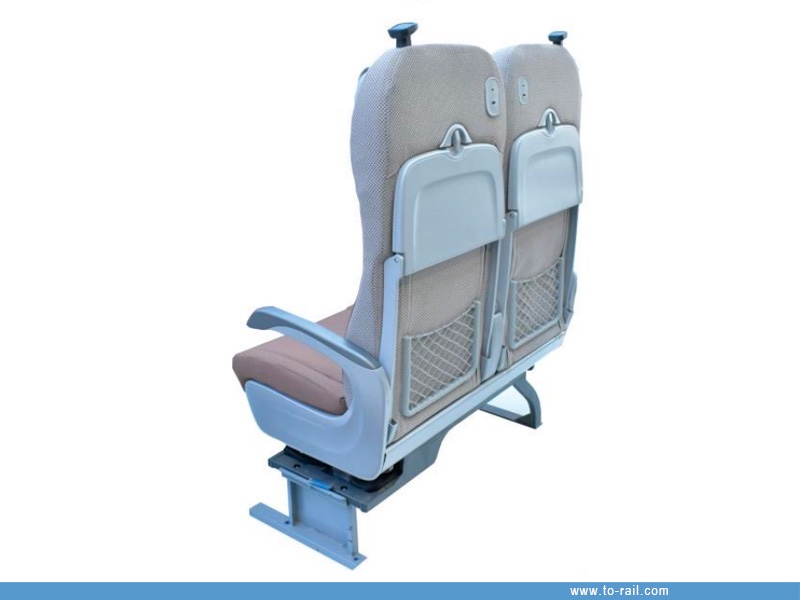

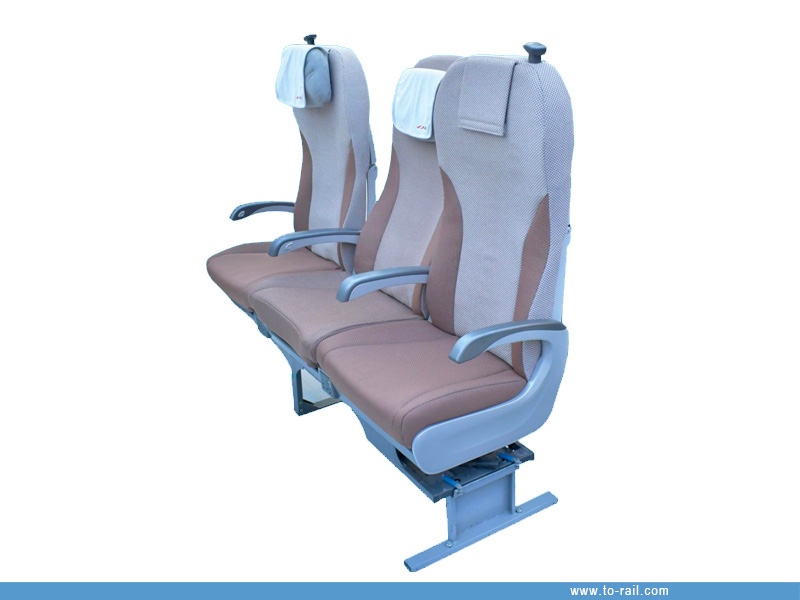

Second‑Class Passenger Seat for EMU Trains

Second‑Class Passenger Seat for EMU Trains

1. Product Overview

Our second‑class train seats are deployed on CR450BF and CR200 EMU trains, engineered with ergonomic design principles to deliver superior riding comfort. Featuring modular construction, easy disassembly & maintenance, multiple mounting options and flexible configuration for sockets, headrests and upholstery materials. Fully compliant with international and Chinese railway standards for structural strength, fire‑safety and environmental performance, ideal for high‑speed and intercity rolling‑stock projects.

 2. Key Features

• Adjustable backrest: Backrest tilt adjustable from 5°‑24.5°, maximum tilt angle configurable according to seat pitch.
• Rotatable armrest: Armrests flip up to 95°, with sheep‑horn handles fitted at aisle side for passenger convenience.
• Multi‑port power supply: 5‑pin socket at cushion front; dual USB‑A & USB‑C ports at rear. Socket configuration customizable per project requirements.
• On‑seat amenities: Fold‑away table and magazine net pocket fitted on seat back.
• Ergonomic support: Raised lumbar support; integrated or detachable headrest options, optimized human‑body curve for long‑journey comfort.
• Flexible upholstery: Microfiber leather or flat woven fabric options. Modular design enables quick installation, removal and servicing.
• Multiple mounting forms: Dual‑seat & triple‑seat versions with diverse floor‑mounting solutions to suit different vehicle body layouts.

 3. Technical Specifications
