First Class Seats For High Speed Train

Category： Coach Interiors
Overall Dimension:675 mm × 1190 mm × 1200 mm
Backrest Adjustment Angle:8° ~ 30°
Cover Material:Microfiber leather / Flat fabric
Fire-Protection Standard:EN45545-2
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

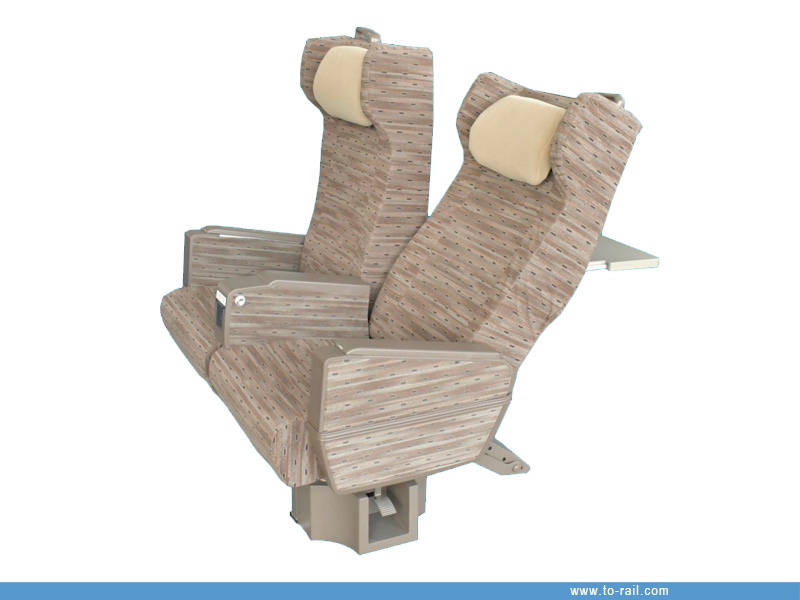

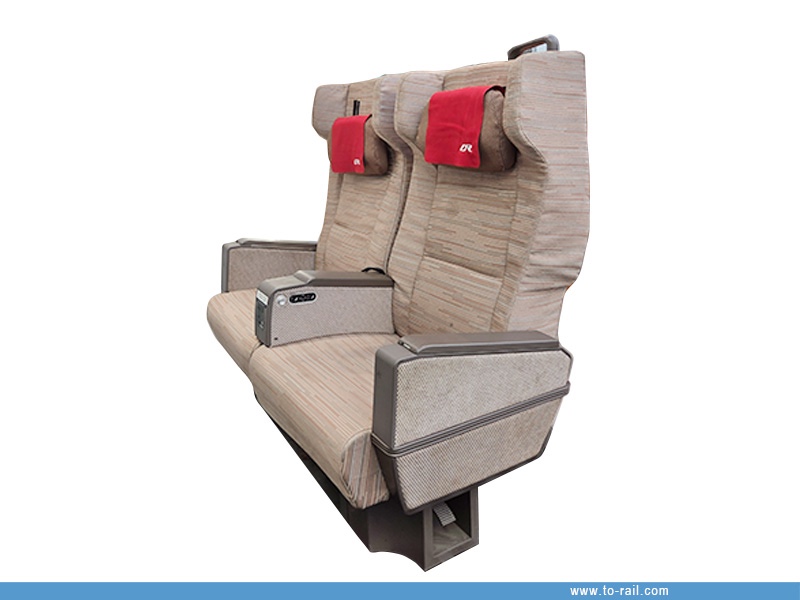

First Class Seats For High Speed Train

1. Brief introduction:

Our high-speed train first-class seats are specially developed for EMU passenger cabins, widely applied on CR400 high-speed trains. Adopting ergonomic human-machine curve design, these dual-passenger fixed-orientation seats deliver premium riding comfort for passengers. Two installation options are available: four-leg floor-mounted type or two-leg plus hanging-leg mounting solution. The whole seat strictly complies with railway industry standards covering structural strength, fire-proof performance and environmental protection for non-metallic parts. Seat cover material supports microfiber leather or flat fabric, featuring simple assembly, easy disassembly and convenient maintenance for vehicle operation.

2. Technical parameters:

Item	Specification
Product Name	High-Speed Train First Class Seats
Overall Dimension(L×W×H)	675 mm × 1190 mm × 1200 mm
Seat Layout	Single unit, dual-position, fixed orientation
Installation Type	4-legged floor-mounted / 2-legged + hanging-leg mounting
Backrest Adjustment Angle	8° ~ 30° (max angle adjustable based on seat pitch)
Structure Strength Standard	TB/T 3263
Fire-Protection Standard	EN45545-2 / TB/T 3237
Non-metallic Parts Environmental Standard	TB/T 3139
Cover Material	Microfiber leather / Flat fabric

3. Key Features

Adjustable Backrest: Backrest tilt angle adjustable from 8° to 30°, maximum inclination adjustable according to seat row spacing for flexible riding posture.
Practical Built-in Accessories: Fixed armrests with optional inner small table boards; hand grip on aisle-side armrest. Front of middle armrest fitted with 5-pin power socket plus dual USB ports (Type-A & Type-C); sockets can be customized per client requirements.

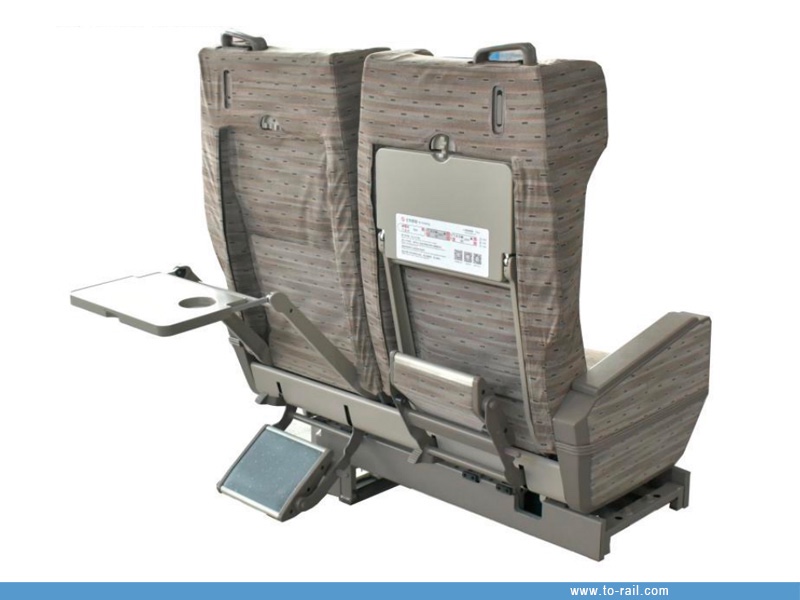

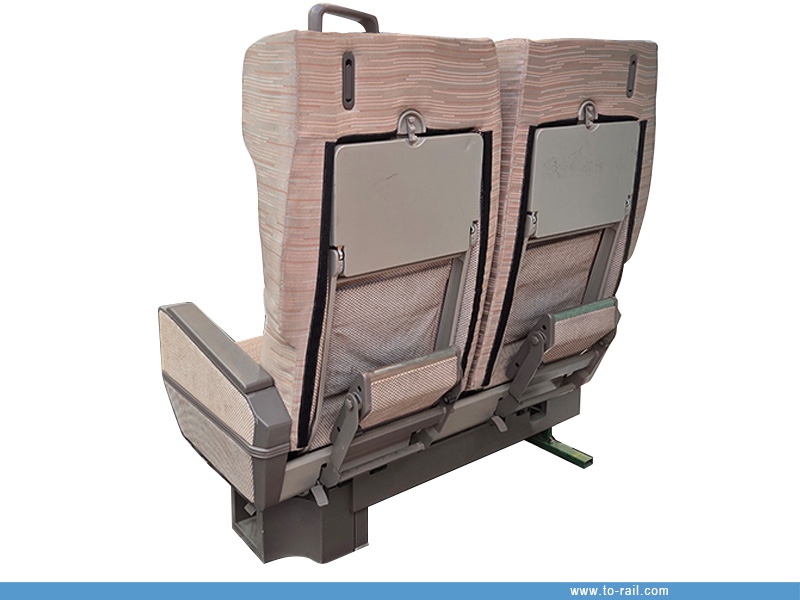

Rear side Amenities: Coat hook, folding dining table, book clip and rear footrest are equipped on seat back for passenger convenience.
Ergonomic Comfort Design: Raised lumbar support for seating zone; optional independent headrest for head-neck area, perfectly matching human-body curve to ensure comfortable ride experience.
Flexible Material & Easy Maintenance: Seat upholstery optional in microfiber leather or flat woven fabric. Modular structure enables quick installation, disassembly and routine maintenance.
Multiple Installation Solutions: Two mounting forms for vehicle-body adaptation: four-legged floor fixed installation or two-legged plus hanging-leg installation.
Qualified Railway grade Performance: Full-set compliance with Chinese railway standards for mechanical strength, fire safety and non-metal environmental protection.
