Fixed Cover Shell Seat Light Rail Passenger Seat EN45545-2 Fire Proof

1. Brief introduction:

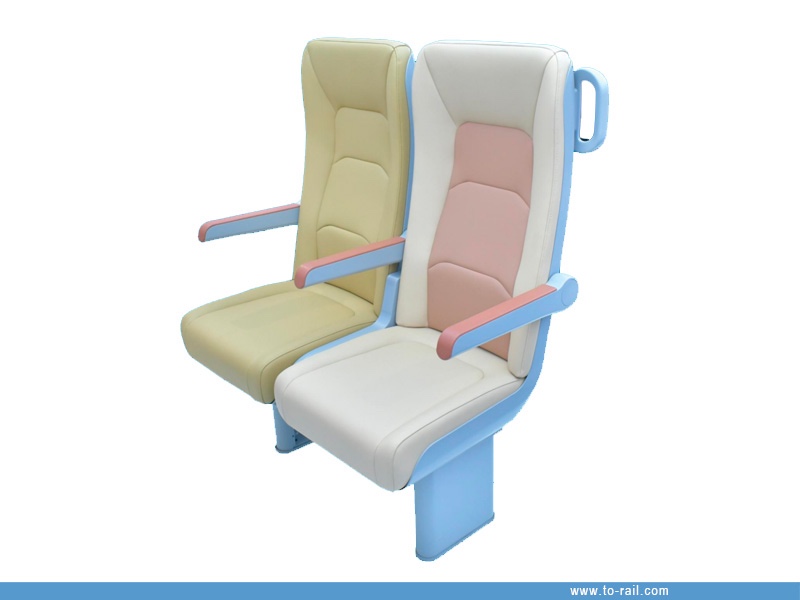

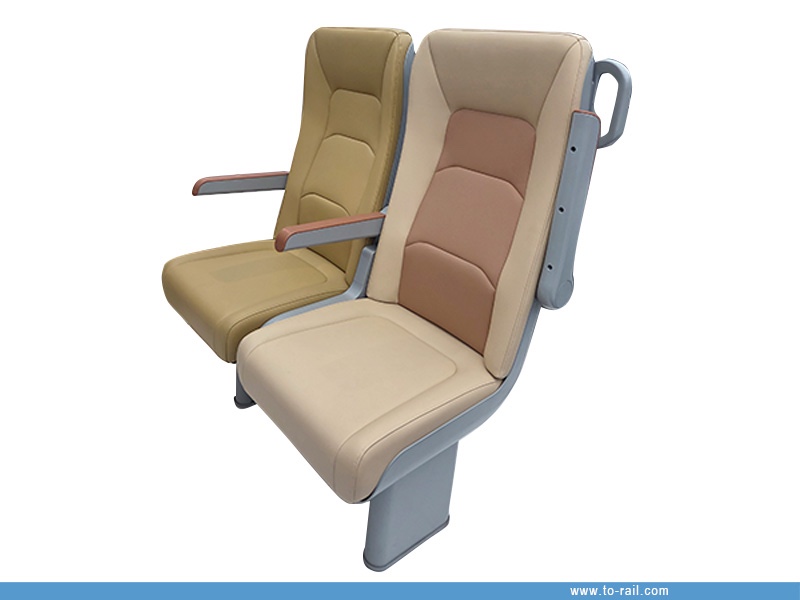

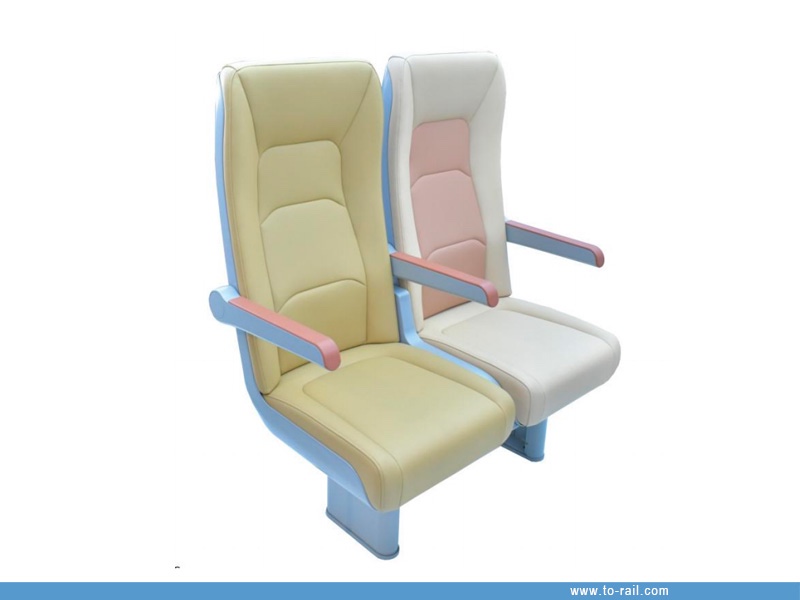

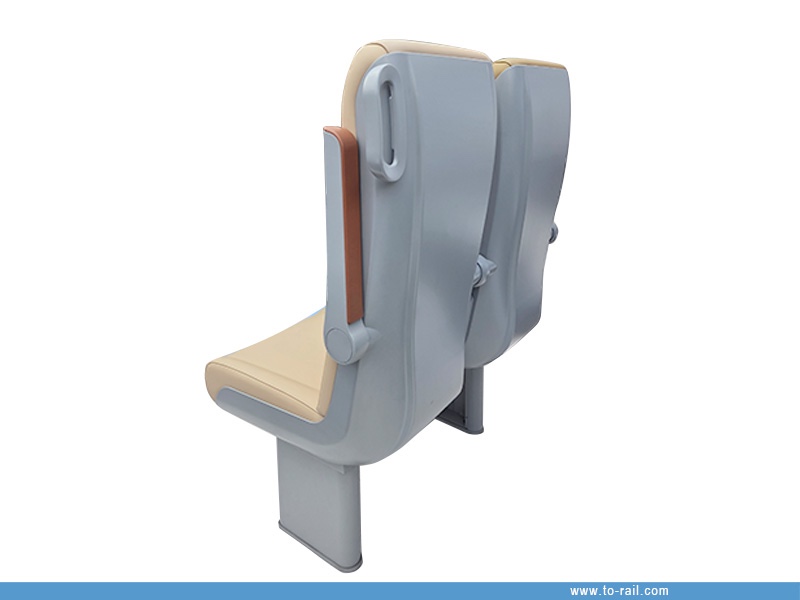

Our fixed orientation cover shell passenger seat is specially designed for light rail and urban transit vehicles. Each unit comes with two seats, available in left side and right side versions. Two installation options are supported: four point floor mounting or two leg plus hanging leg fixing solution.

The seat consists of covering upholstery, shell frame, armrests and base frame. The upholstery adopts high-quality super-fine leather, delivering soft touch, comfortable riding experience and easy-to-clean surface. The armrest can rotate 95° for convenient passenger access. Built-in dual USB sockets (Type-A & Type-C) at lower middle position support mobile device charging. Ergonomic contour provides effective lumbar, neck and head support for passengers.

The product strictly follows international fire safety standard EN45545-2 as well as Chinese railway standards TB/T 3263 for whole-seat strength and TB/T 3139 for non-metallic parts environmental performance, ensuring high safety and long service life for public transit.

2. Technical parameters:

Item	Specification
Product Name	Fixed Cover Shell Light Rail Passenger Seat
Overall Dimension (L × W × H)	604 mm × 1024 mm × 1150 mm
Seat Arrangement	Left-row / Right-row, 2-seats per unit
Installation Type	Four-legs floor-mounted fixation; Two-legs + hanging-leg fixation
Upholstery Material	Super-fine leather
Armrest Rotation Angle	95° flip-up armrest
USB Port	Type A + Type C dual ports
Backrest & Seat Frame	Non-adjustable fixed structure
Fire Protection Standard	EN45545-2
Whole-seat Strength Standard	TB/T 3263
Non-metallic Parts Environmental Standard	TB/T 3139

3. Main features:

Fixed-orientation dual-seat unit, left-hand and right-hand versions optional for carriage layout
Two installation modes: four-leg floor mounting or two-leg & hanging-leg mounting, fit different vehicle body structures
95° flipable armrest, fixed hand grip on aisle side for passenger safety
Dual USB A & USB C charging sockets, convenient for passenger electronics charging
Ergonomic curved profile, reliable lumbar, neck and head support for comfortable ride
Super-fine leather upholstery: soft touch, stain-resistant, easy to clean and maintain
Strict compliance with EN45545-2 fire safety, TB/T 3263 mechanical strength and TB/T 3139 environmental requirements
Robust 4 part construction: covering, shell frame, armrest assembly, base frame for long-term public transit operation
