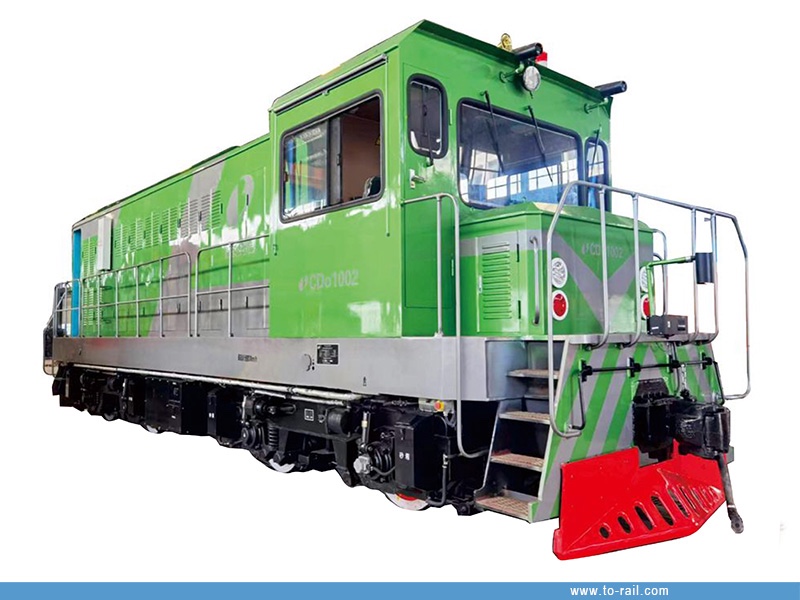

TJD1360XF Pure Electric Locomotive 1000KW Switcher
- Category： Shunt Locomotive
- Model:TJD1360XF
- Battery capacity: ≥1560kwh
- Cruising range: ≥100km
- Rated power: 1000kw
TJD1360XF Pure Electric Locomotive 1000KW Switcher
1. Brief introduction:
The TJD1360XF pure-electric switching locomotive is a high-performance electric switching locomotive, suitable for shunting on standard gauge railways or district transfer tasks in large factories and local railways, serving as an eco-friendly and high-power electric switching locomotive for large-scale industrial scenarios.
This electric switching locomotive is equipped with the most advanced lithium iron phosphate power battery pack, featuring zero emission, low noise, and maintenance-free motor and battery. It adopts DC-AC electric transmission, air braking and energy recovery braking, while its electrical system uses a PLC program controller, electronic reversing and electronic shifting—ensuring stable, efficient and energy-saving operation for the electric switching locomotive.
As a reliable eco-friendly electric switching locomotive, the TJD1360XF has good traction performance and boasts remarkable advantages, including large transfer capacity, energy conservation and environmental protection, user-friendly operation and convenient maintenance. It is an ideal green transportation solution for large-scale industrial shunting and district transfer needs, and a cost-effective high-power electric switching locomotive for enterprises.
2. Main technical parameters:
|
Model |
TJD1360XF |
|
Application |
Switching and district transfer |
|
Battery type |
LiFePO4 power battery |
|
Battery capacity(kwh) |
≥1560 |
|
Motor rated power(kw) |
≥500X2, ≥250X4 |
|
Cruising range(km) |
≥100 |
|
Rated power(KW) |
1000 |
|
Design speed (km/h) |
30 |
|
Min continuous speed (km/h) |
7.5 |
|
Traction effort at wheel rim (KN) |
310 |
|
Service weight(t) |
88 |
|
Axle load(t) |
22 |
|
Wheel diameter(mm) |
915 |
|
Track gauge(mm) |
1435 |
|
Axle arrangement |
B-B, B0-B0 |
|
Min radius(m) |
80 |
|
Transmission mode |
DC-AC electric transmission |
|
Coupler type |
No.13 top operation coupler |
|
Coupler center height(mm) |
880 |
|
System voltage |
DC24V |
|
Charge mode |
Dual guns, chargeable at both sides |
|
Braking |
Air brake+parking brake |
|
Dimensions(mm) |
13250*3000*4400 |
