Automatic Railway Bogie Frame Turnover Device Tilting Machine
- Category： Railway Maintenance Workshop Equipment
- Lifting Capacity: 5t
- Lifting Speed:520 mm/min
- Rotating Speed: Approx.0.9r/min
- Slewing Range:±180°
Automatic Railway Bogie Frame Turnover Device Tilting Machine
1. Brief introduction:

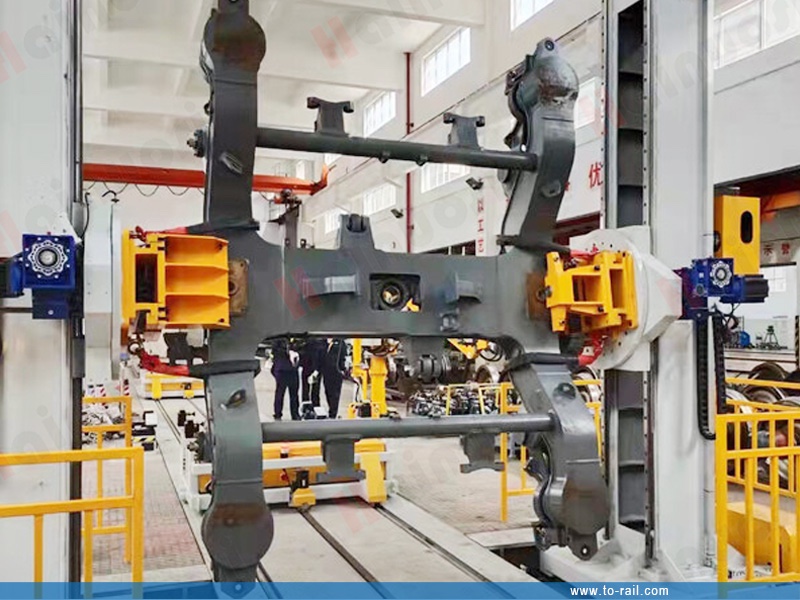

The bogie frame turnover machine is mainly used for the turnover operation of the bogie frame of EMU (Electric Multiple Unit) vehicles. It can rotate 360° in both forward and reverse directions and is equipped with a lifting function, facilitating the inspection, maintenance, disassembly and assembly of parts and components of the bogie frame.

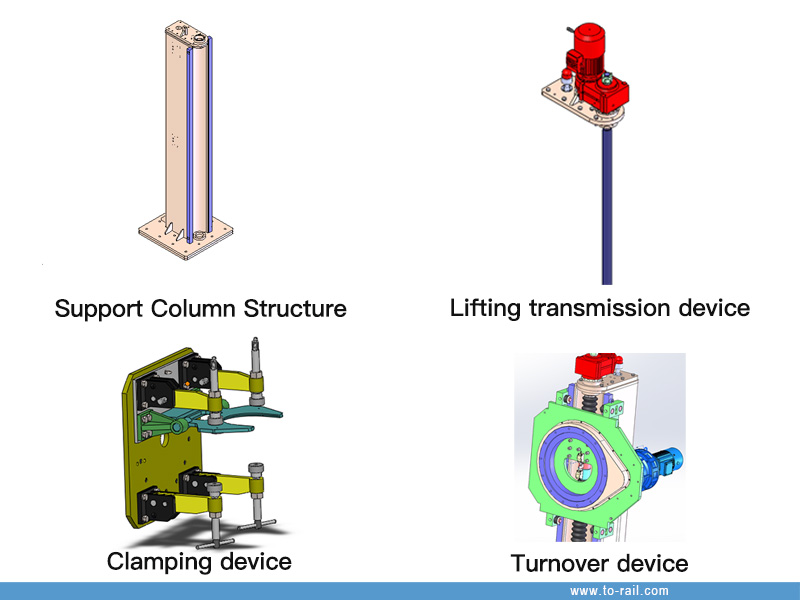

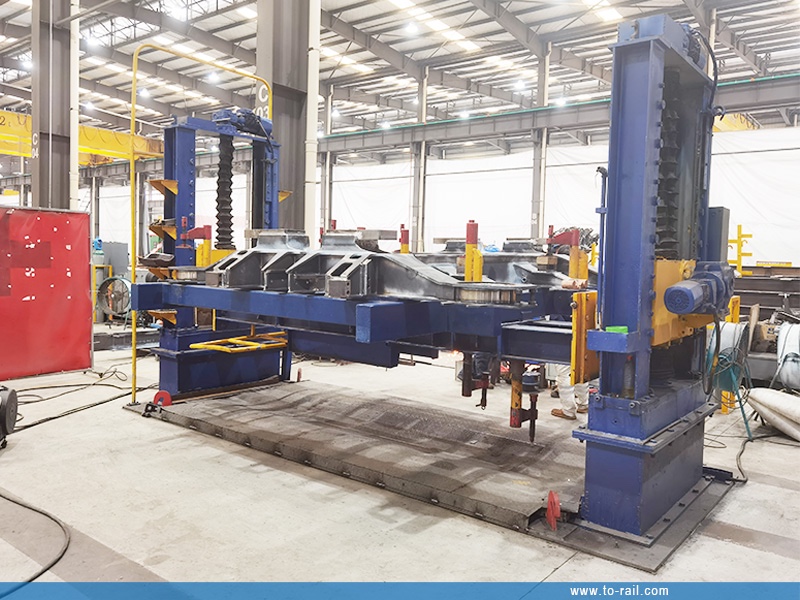

This bogie frame mainly consists of a supporting column structure, lifting transmission device, turnover drive mechanism, clamping device and electrical control system.
2. Technical parameters:
|
Item |
Specification |
|
Lifting Capacity |
5000 kg |
|
Lifting Speed |
520 mm/min |
|
Rotating Speed |
Approx. 0.9 r/min |
|
Lifting Stroke |
1400 mm |
|
Slewing Range |
±180° |
|
Lifting Drive Power |
2×1.5 kW (provisional) |
|
Turnover Drive Power |
2×1.1 kW (provisional) |
|
Overall Dimensions |
Approx. 5000 mm × 3620 mm × 1125 mm |
|
Machine Weight |
Approx. 5000 kg |
